The Everything Frame!

Presentation Link:

https://www.aught.io/courses/everything-frame


Live Streams	Video	Gallery

A Workshop in Five Parts:

What is a Raspberry Pi?
Kit Components
OS Installation
Assembly
Software & Scripting

Part 1: What is a Raspberry Pi?

In brief, The Raspberry Pi is a:

tiny, full-featured computer.
platform for creating with code and electronics.
"System on a Chip" ideal for embedded systems.

To build an art installation, measure rainfall, make a light-up dress – none of those things sound like computer science but they’re all things that computers can help you do – that’s the message we’re really trying to get across.
- Eben Upton

Source: https://simpleweb.co.uk/10-years-of-raspberry-pi-an-interview-with-creator-eben-upton/

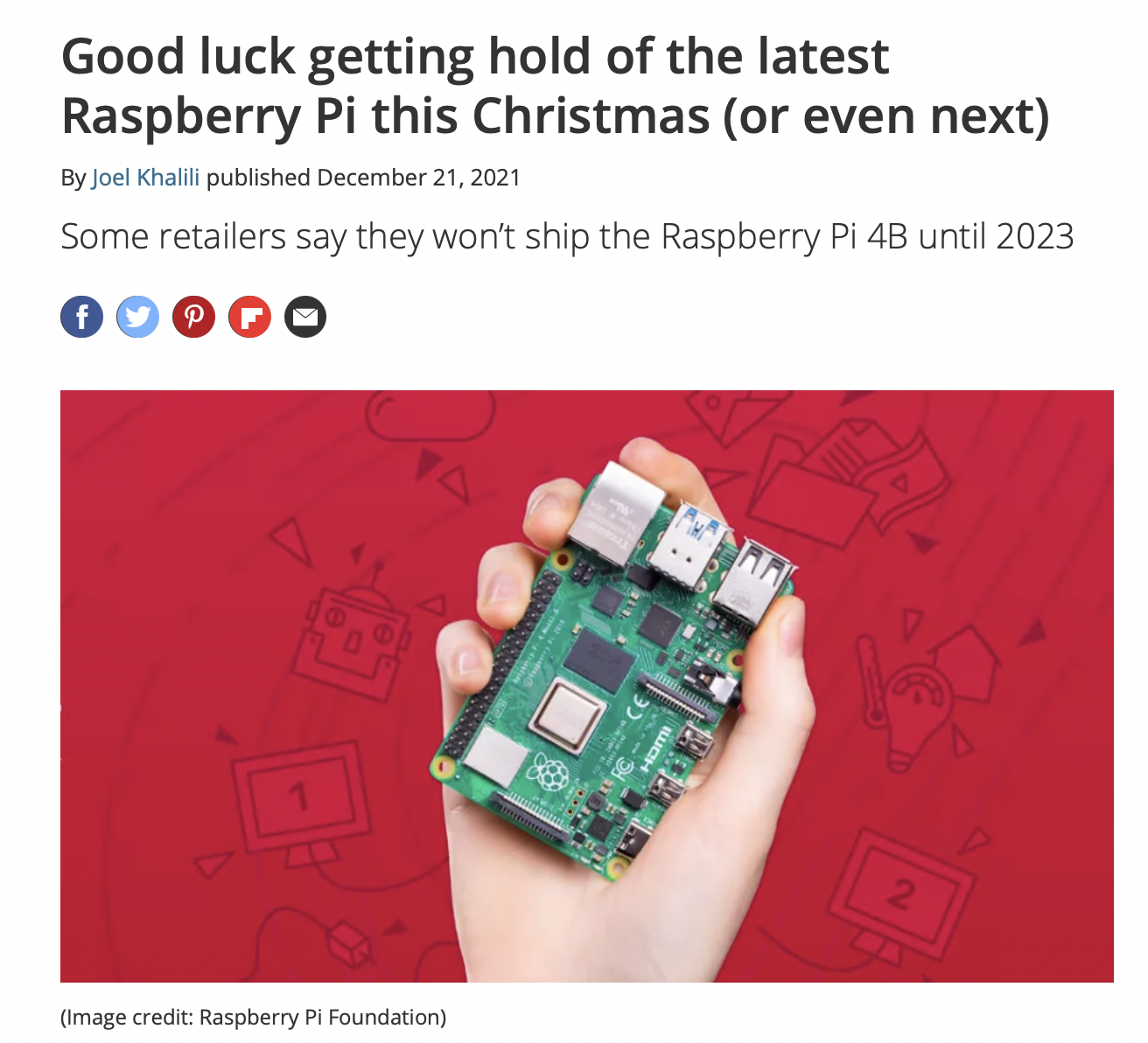

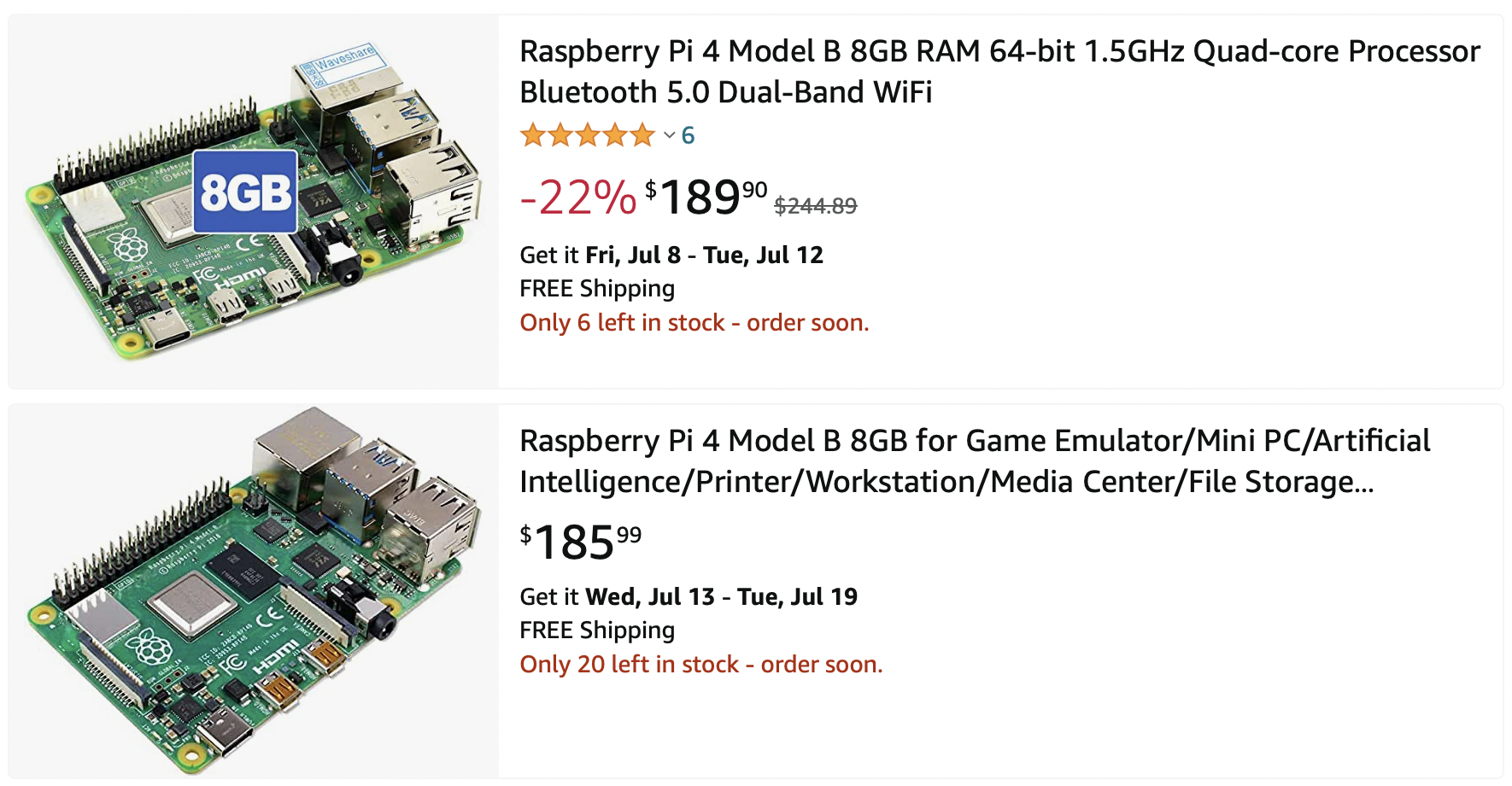

Unable to Meet Demand

Between commercial clients, educators and makers, there aren't enough for everyone.

The retail price is $35

Right now we feel the right thing to do is to prioritise commercial and industrial customers – the people who need Raspberry Pis to run their businesses – we’re acutely aware that people’s livelihoods are at stake.
- Eben Upton

Source: https://www.raspberrypi.com/news/production-and-supply-chain-update/

Part 2: Kit Components

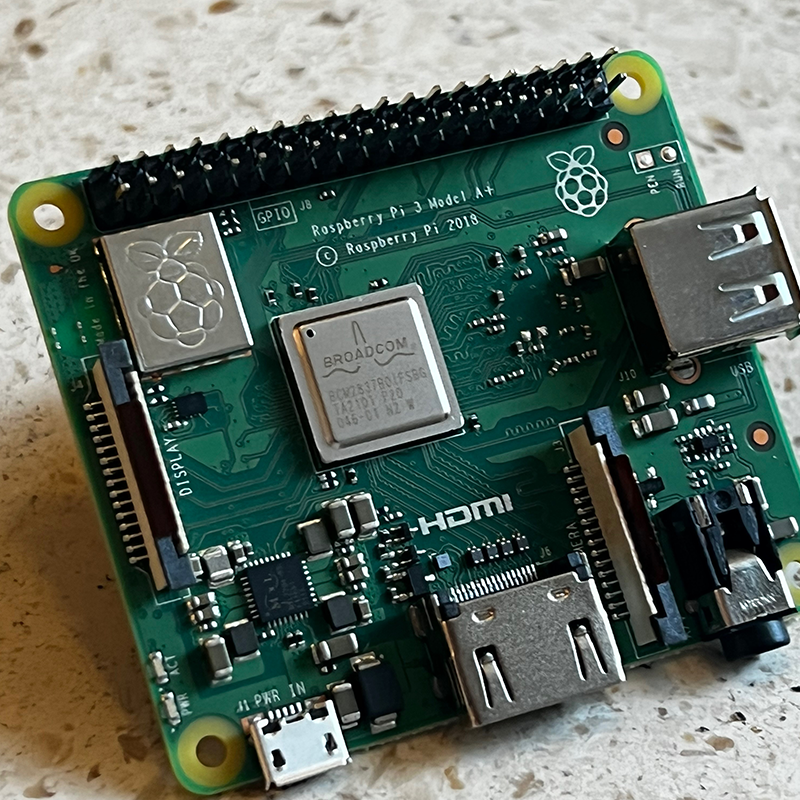

Raspberry Pi 3A+

The heart of it all. Smaller than the Pi 4, it has a 64-bit processor, wi-fi and Bluetooth.

And, of course, HDMI out.

Check out the product page.

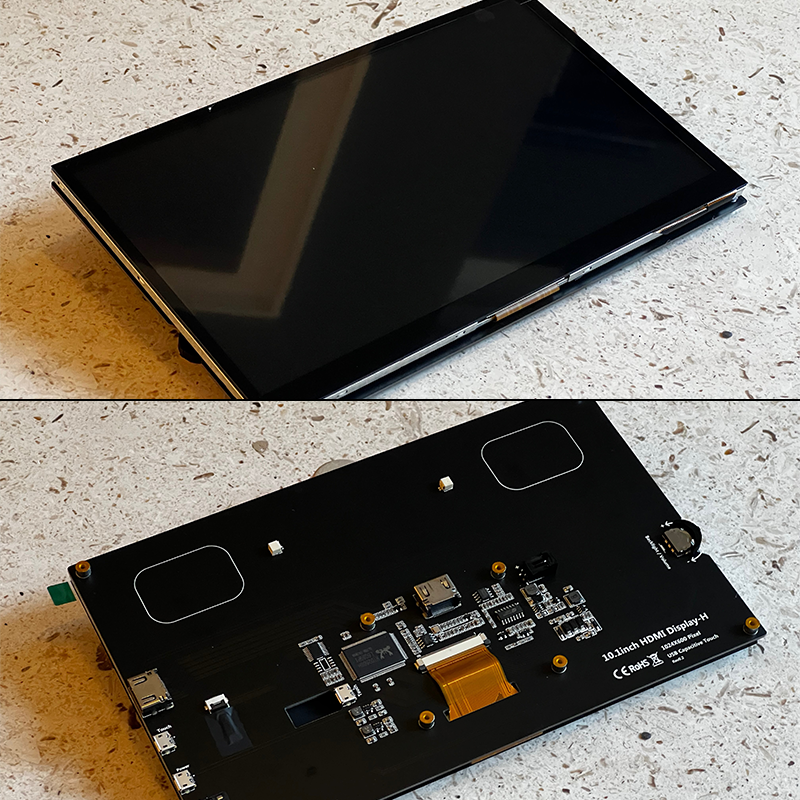

10.1 inch IPS Display

Designed for the Pi, this includes an HDMI connector, speakers, and a little stand.

It's also a touch screen!

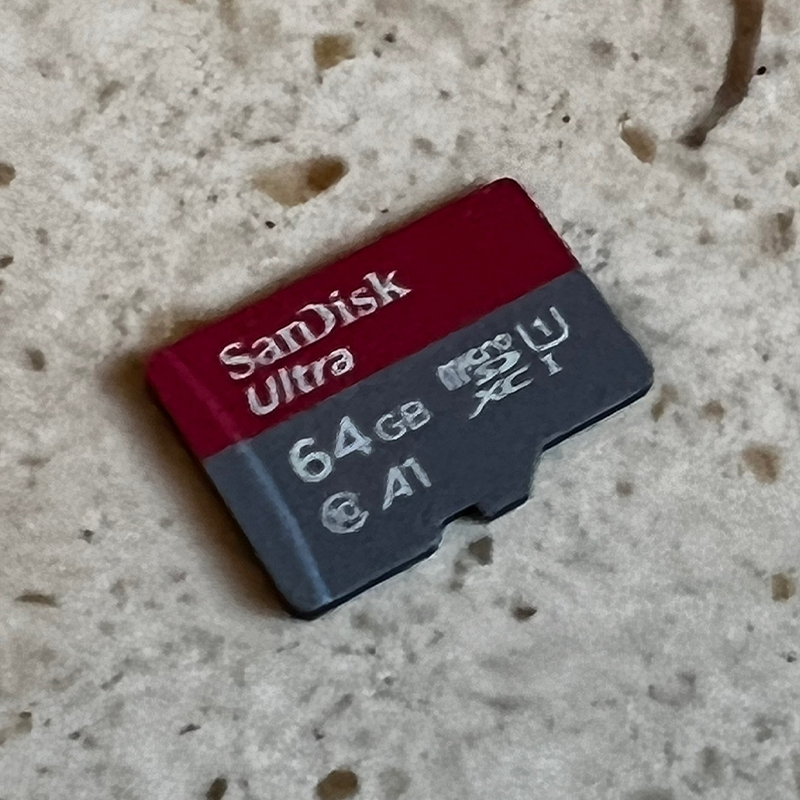

SD Card

This will contain the operating system, applications, and all the media on our frames.

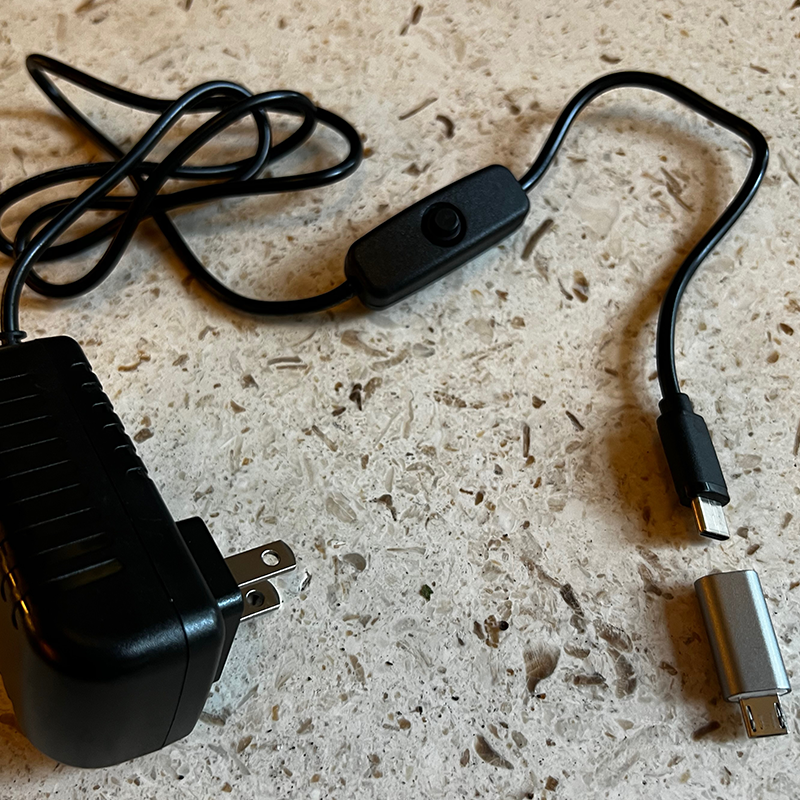

5V 2.5A Power Supply

Just what it sounds like.

The Raspberry Pi 3A+ can also be powered by a micro USB cable connected to a computer or USB wall adapter.

Optional: Battery

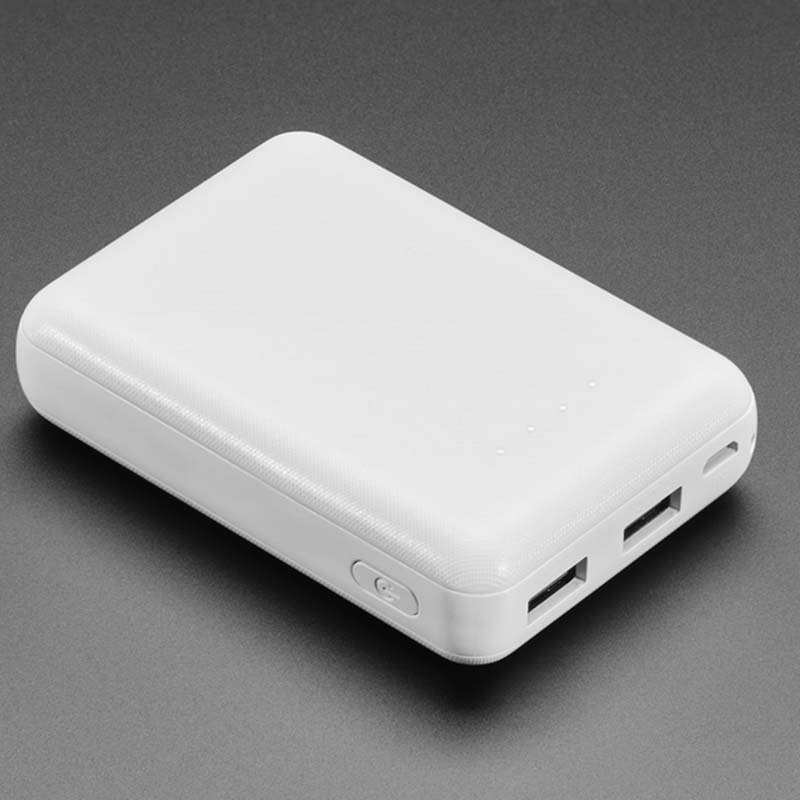

A usb battery pack works great for powering the frame.

It usually lasts between 6 and 8 hours on a charge.

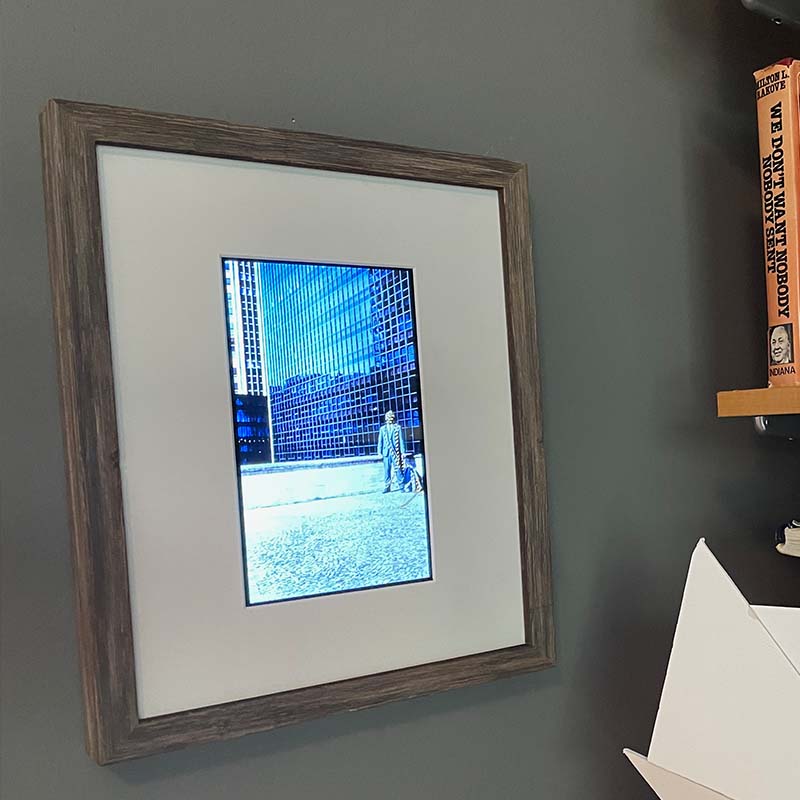

Optional: Frame & Mat

The whole assembly is small enough to fit into a deep frame.

Mat dimensions:
8⅞ in (225mm) x 5⅛ in (130mm)

It doesn't have to be pretty:

Part 3: OS Install

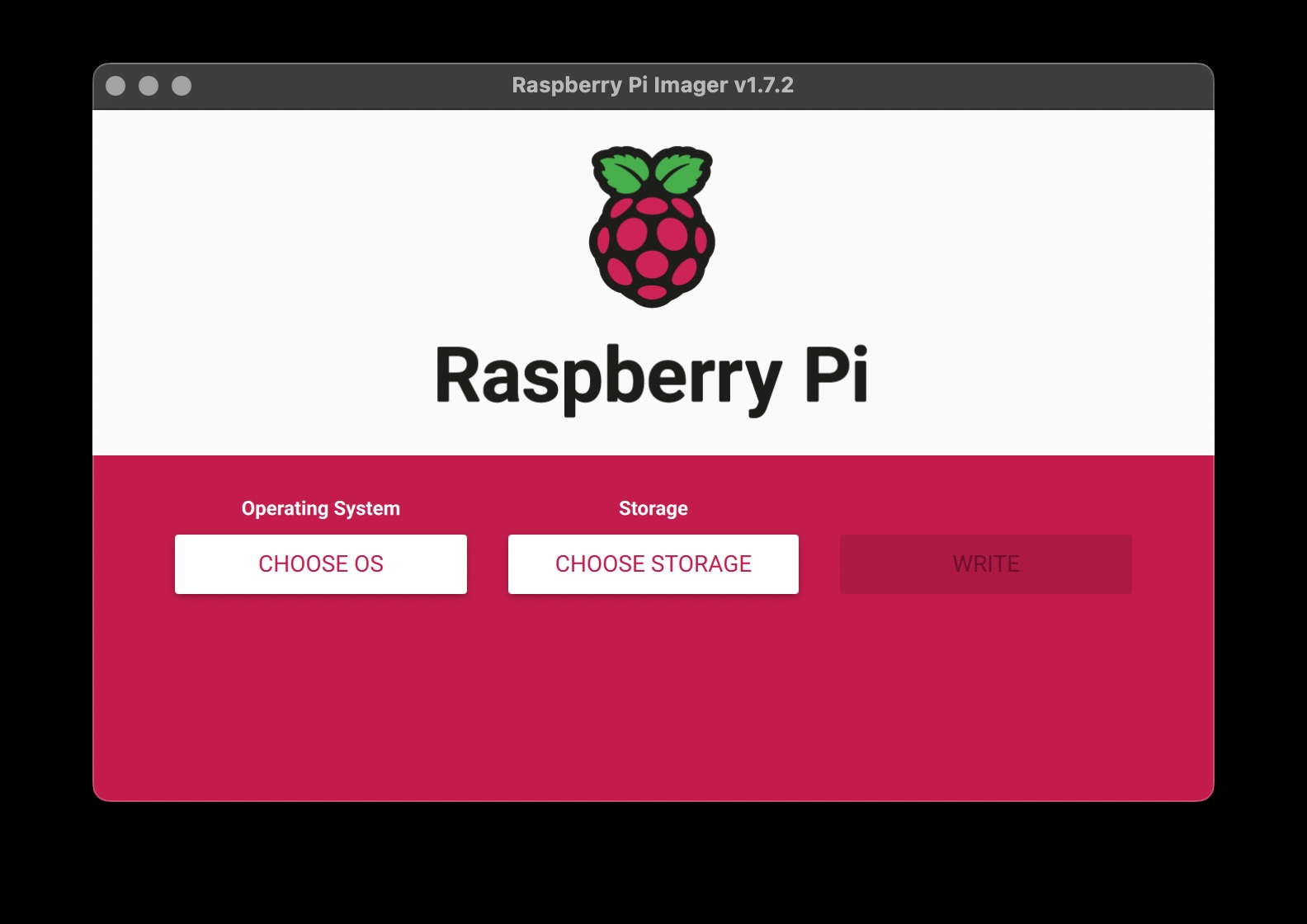

Download the Imager

www.raspberrypi.com/
software/

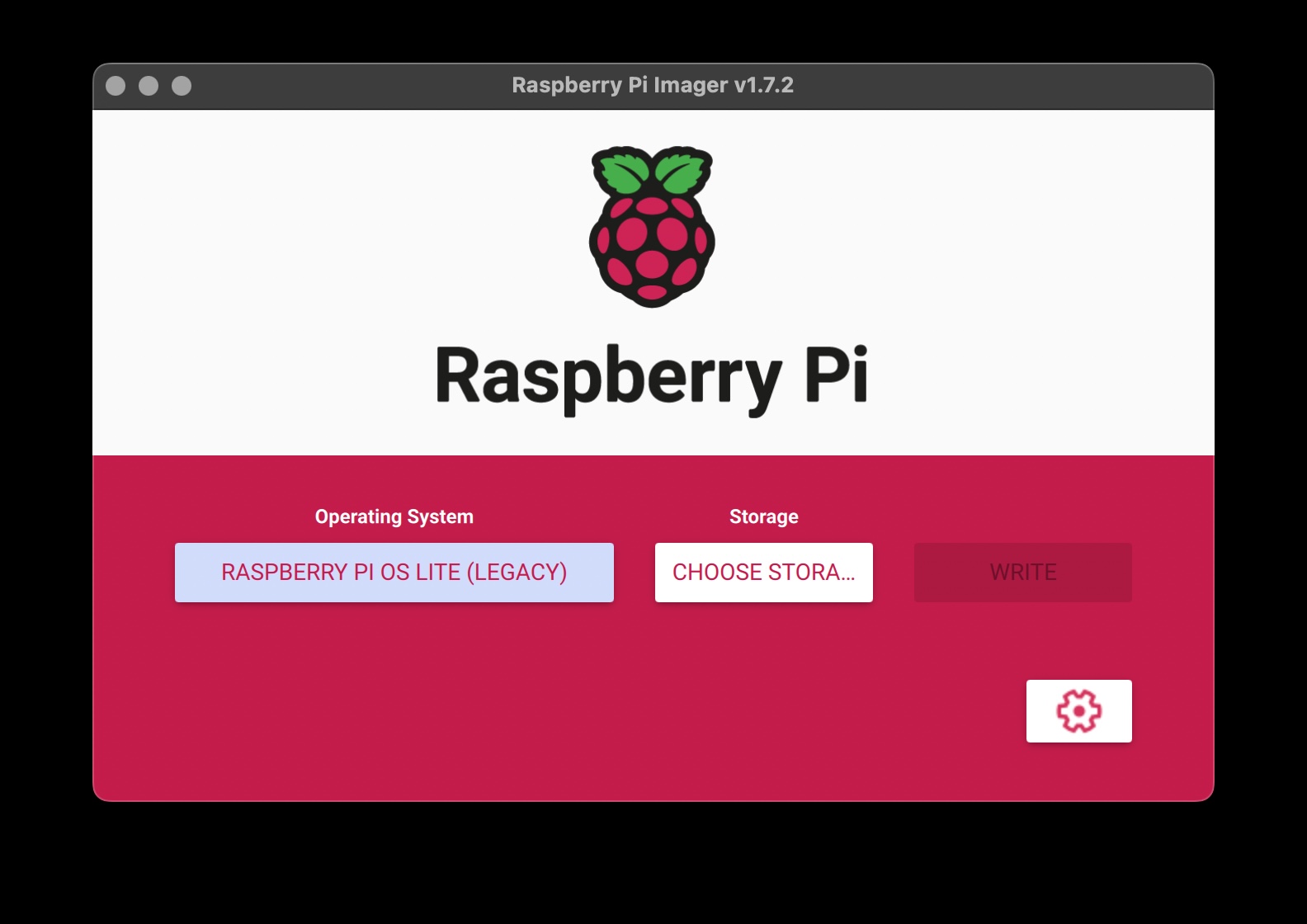

Choose an OS

Select:
Raspberry Pi OS (other)

Then select:
Raspberry Pi OS Lite (Legacy)

Select SD Card

Look for your SD card in the pop-up window. It may have a generic name.

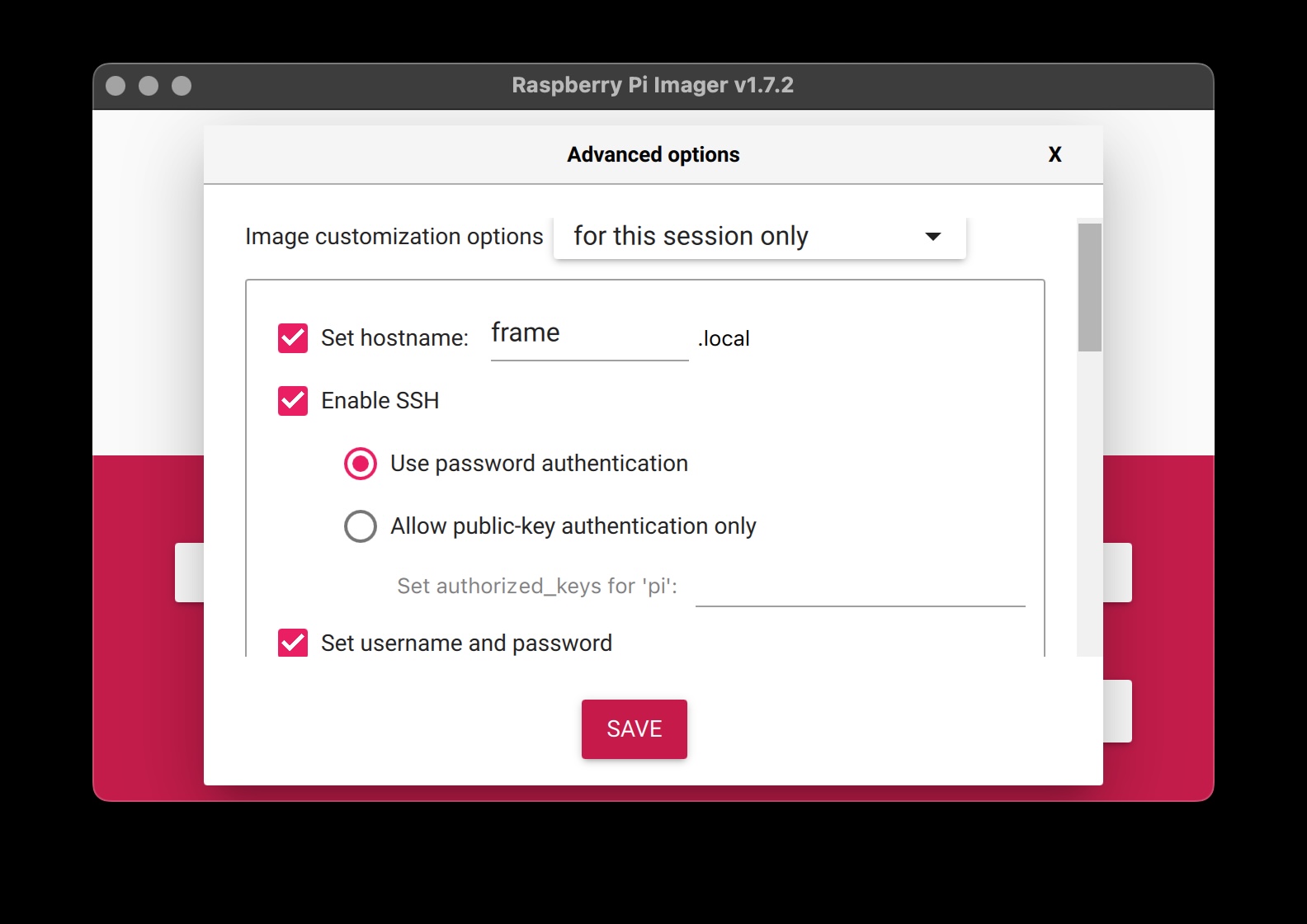

Name your Pi & create a user

Click on the gear icon.

Create a hostname, a username, password, and add WiFi and locale information.

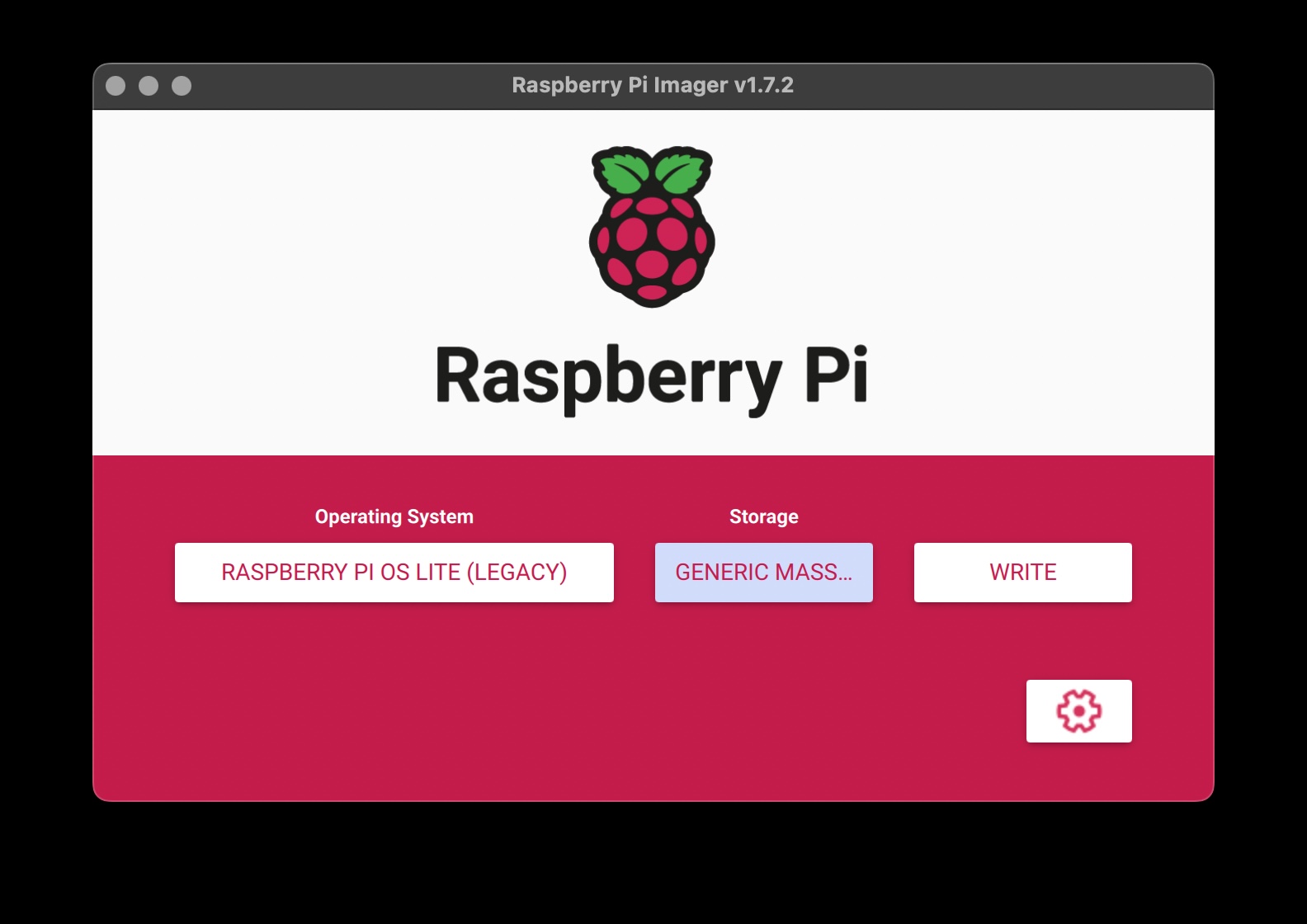

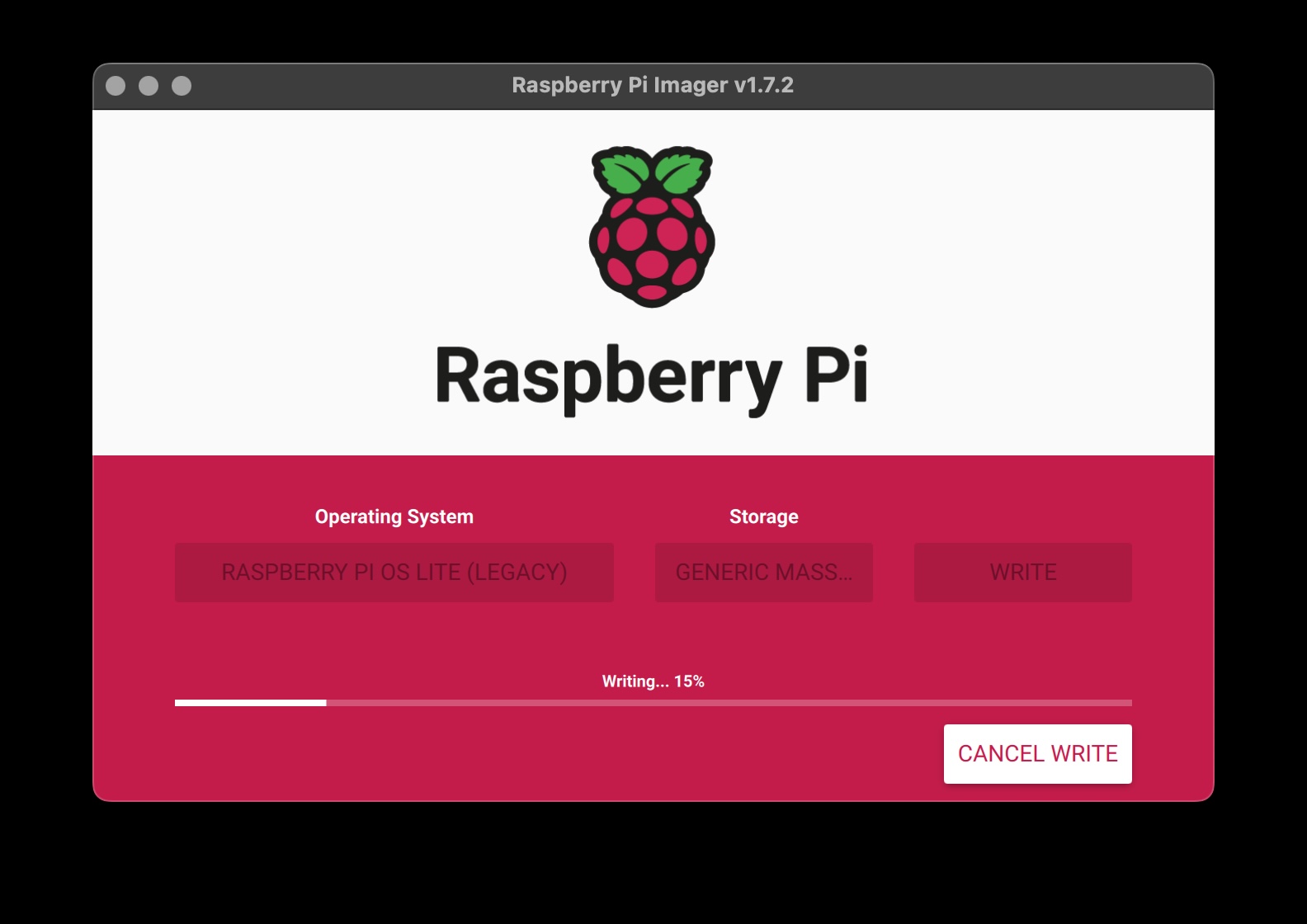

Write the OS

Hit the write button. Once complete, eject the SD card and insert it into your Pi.

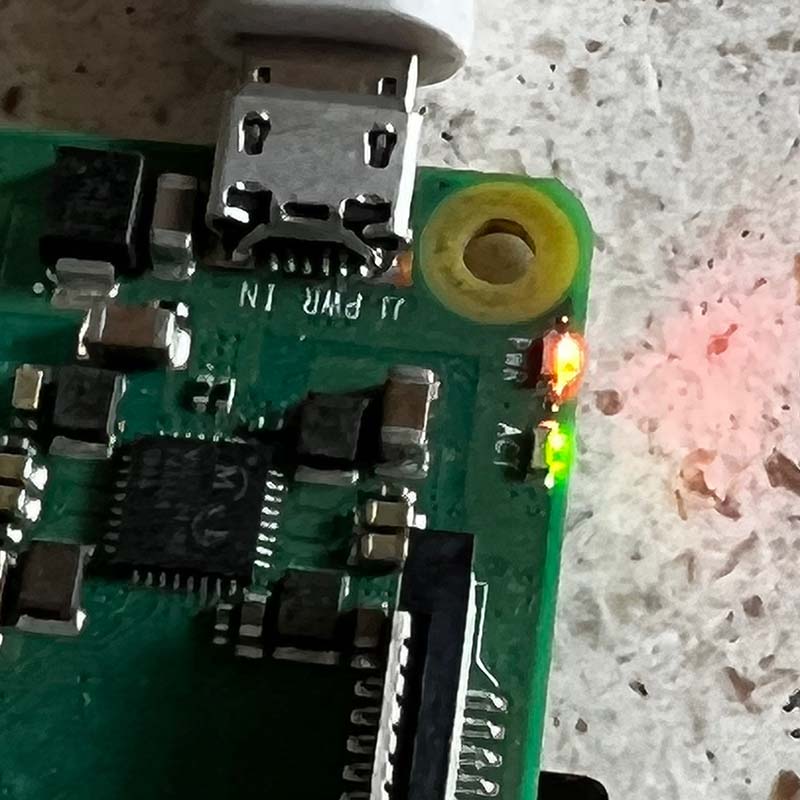

Plug it in and turn it on – it's alive!

SD Card

Happy Lights!

Meet the Terminal

Mac: press command space, type "terminal"

Windows: click the search icon, type "terminal"

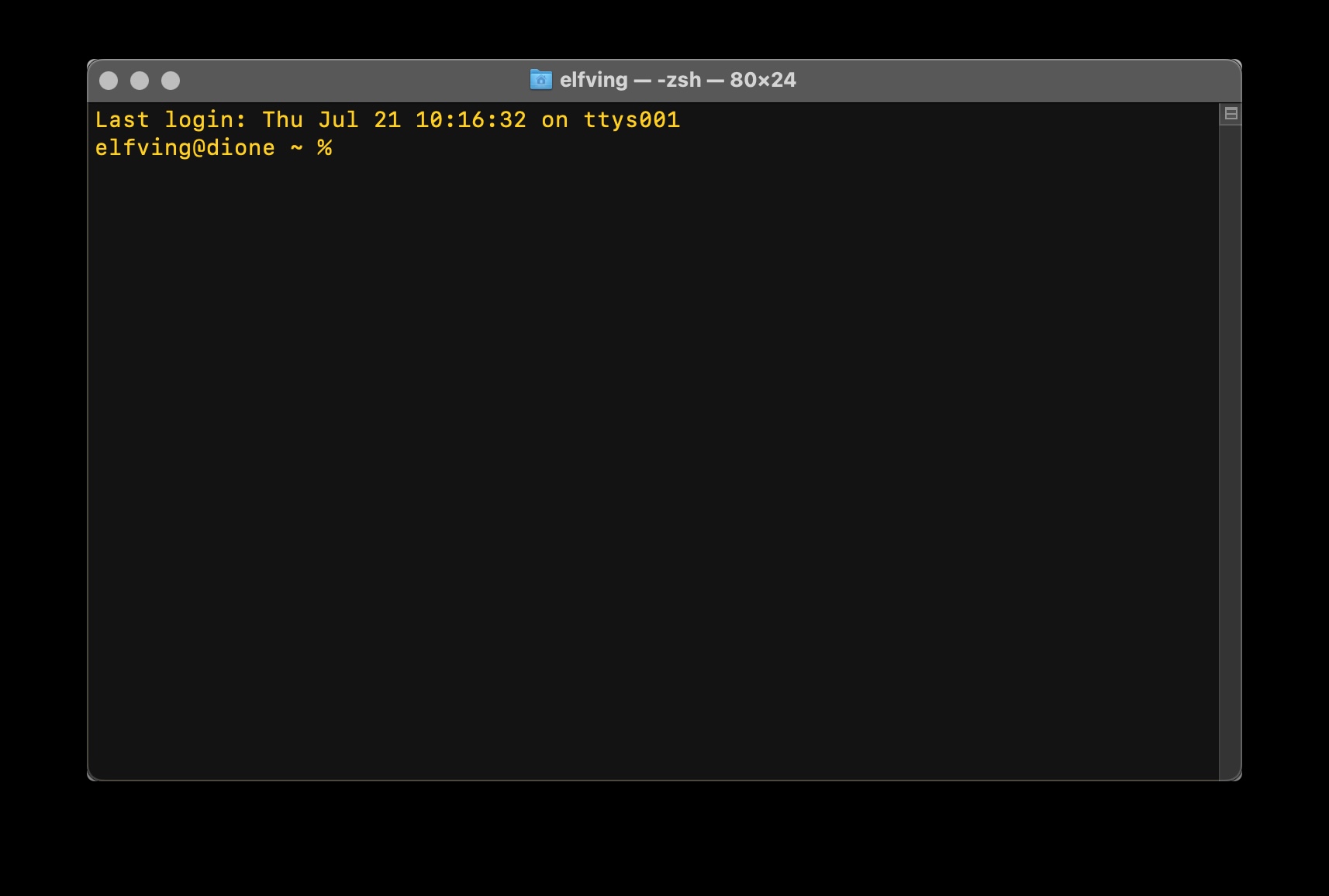

Your terminal will look somewhat like this:

Notes on the Terminal and command line:

If you're new to working with computers this way, the terminal and command line can be intimidating.

Rather than pointing and clicking on folders and files, we use text based commands to navigate through the system, create files and launch applications.

We'll use the terminal to navigate both our local computers, and the Raspberry Pi. You may find it useful to open two terminal windows or tabs.

Notes on prompts:

In this guide, we'll use different colors and prompts to distinguish between commands for your computer, and those for the connected Pi.

% This prompt indicates a command entered on your computer.

$ This indicates a command entered on the Pi.

The colors in your terminal may be different, but the commands we'll use will be the same.

Let's get started:

% ssh username@hostname.local

$ sudo raspi-config

Note: don't copy the prompt (% or $) when writing commands, and replace "username@hostname.local" with the names created while configuring the SD card. Log in with the password you created and accept the new connection.

What just happened??

We used the ssh command to open a connection to the raspberry pi.

After logging into the Pi (note the prompt change!) we used the sudo command to launch the raspi-config application.

Don't worry if this still feels a bit abstract.

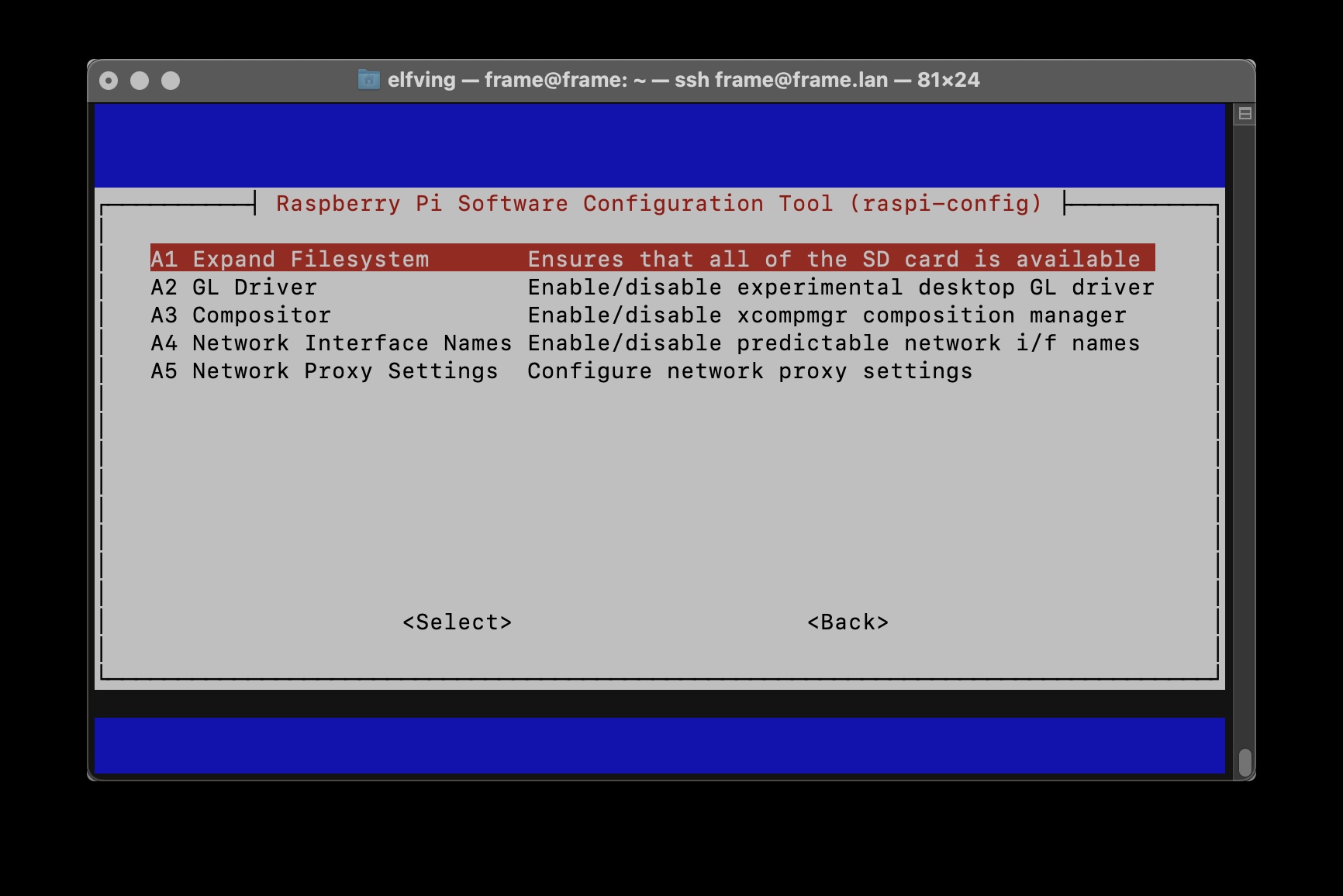

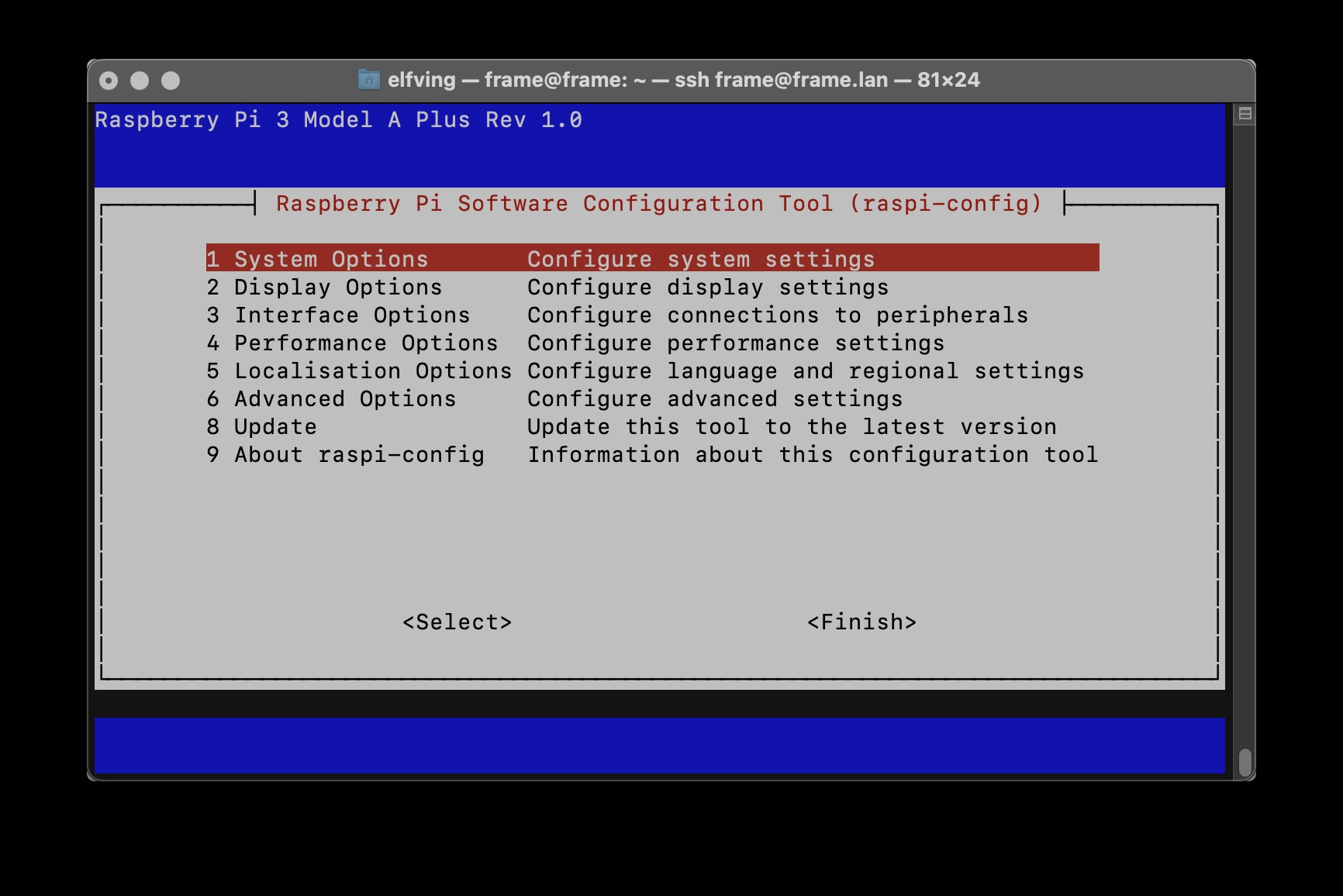

Raspberry Pi configuration:

Expand the filesystem:

Tap down to open "Advanced Options" then select "Expand Filesystem" from the menu.

Select "Finish" and reboot.

After rebooting, we need reconnect to the Pi and update the software:

% ssh username@hostname.local

$ sudo apt update

$ sudo apt-get full-upgrade

$ sudo shutdown now

Note: always replace "username@hostname.local" with your username and hostname.

Congratulations! You've just configured and connected to a Raspberry Pi.

We'll return to the terminal and command line to install software after assembling the frame.

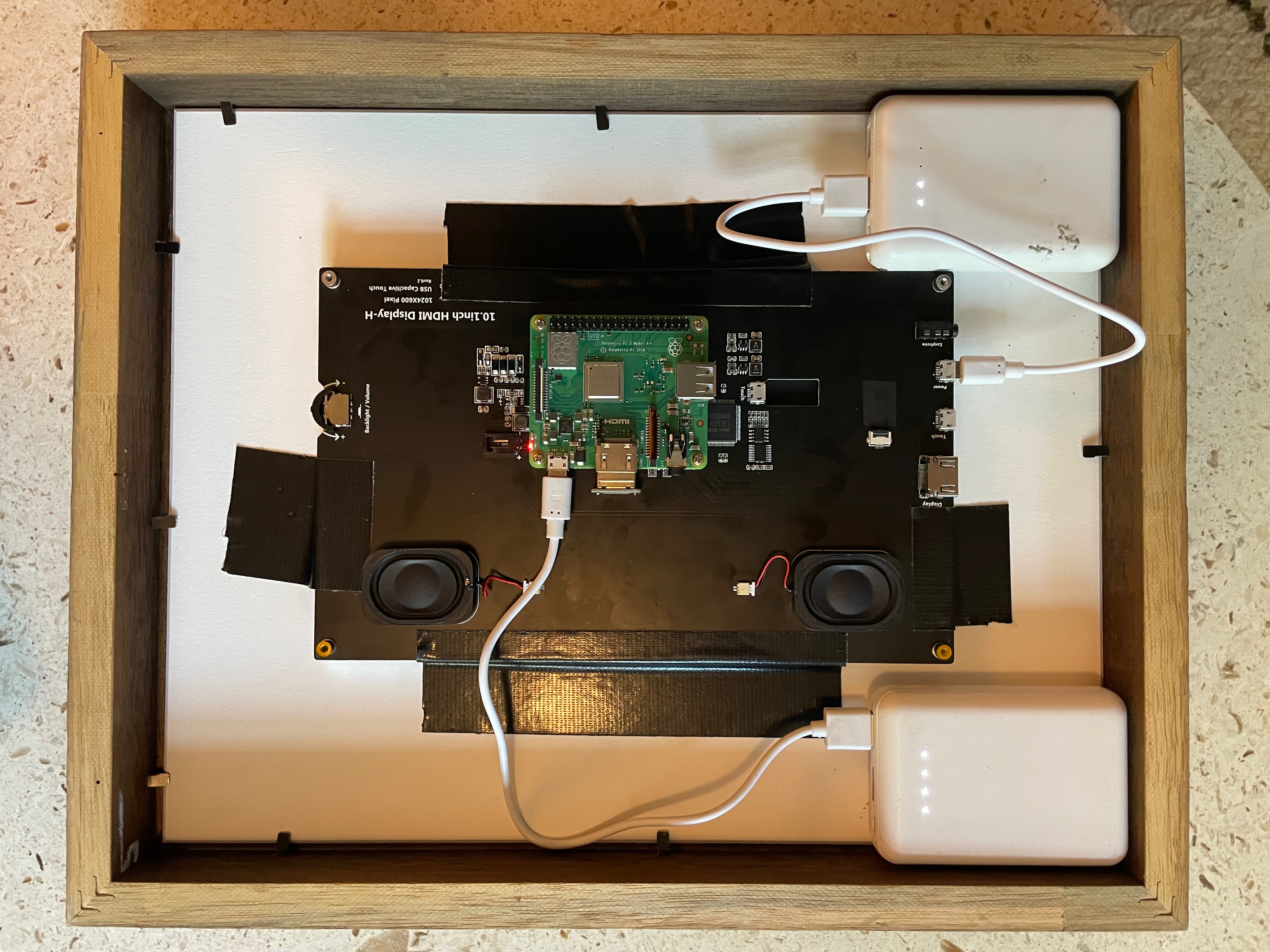

Part 4: Assembly!

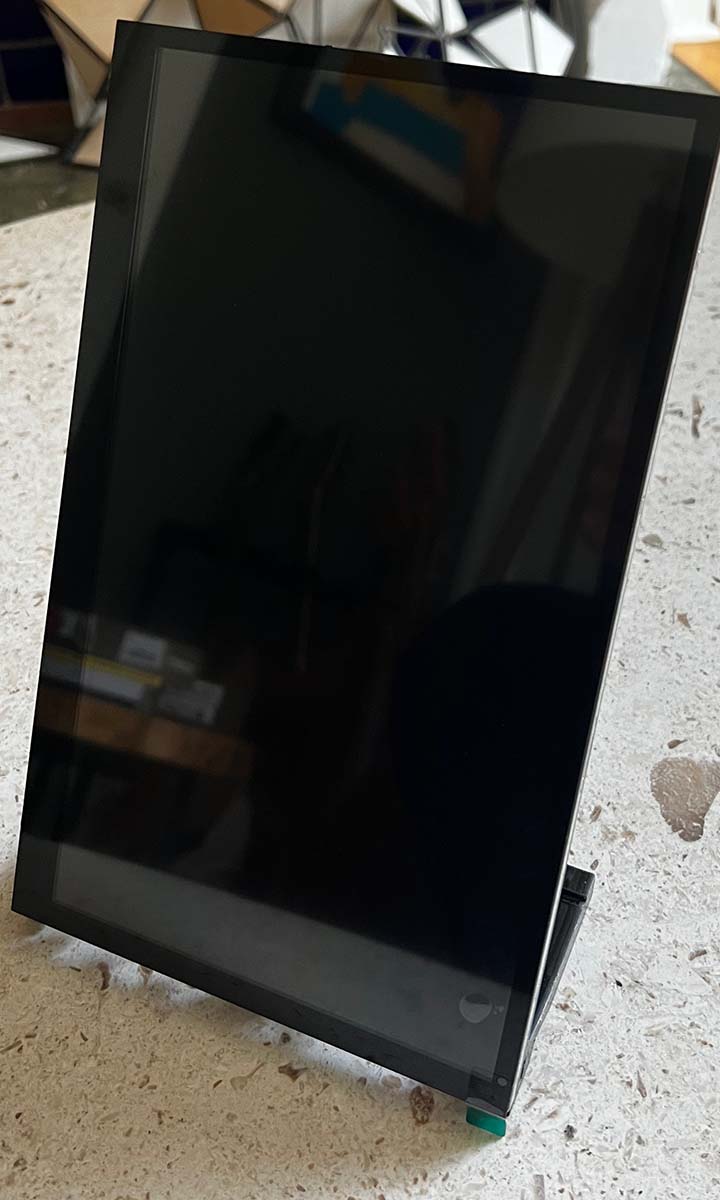

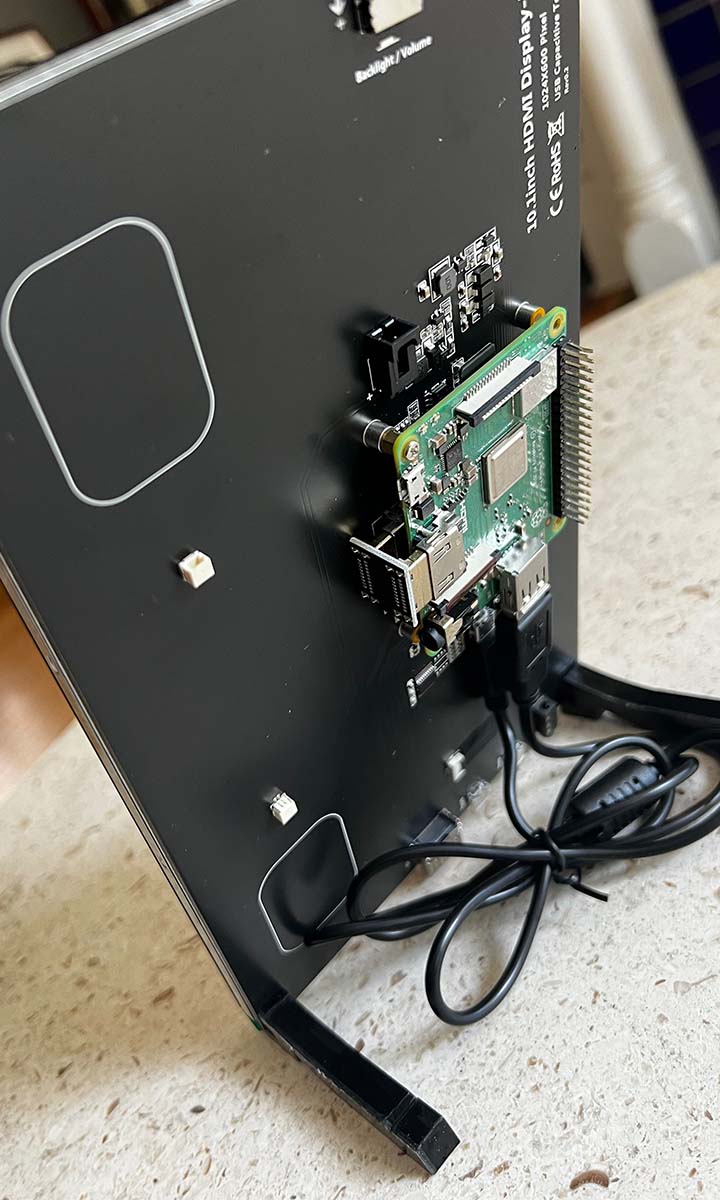

Front

Back

1: This Bag

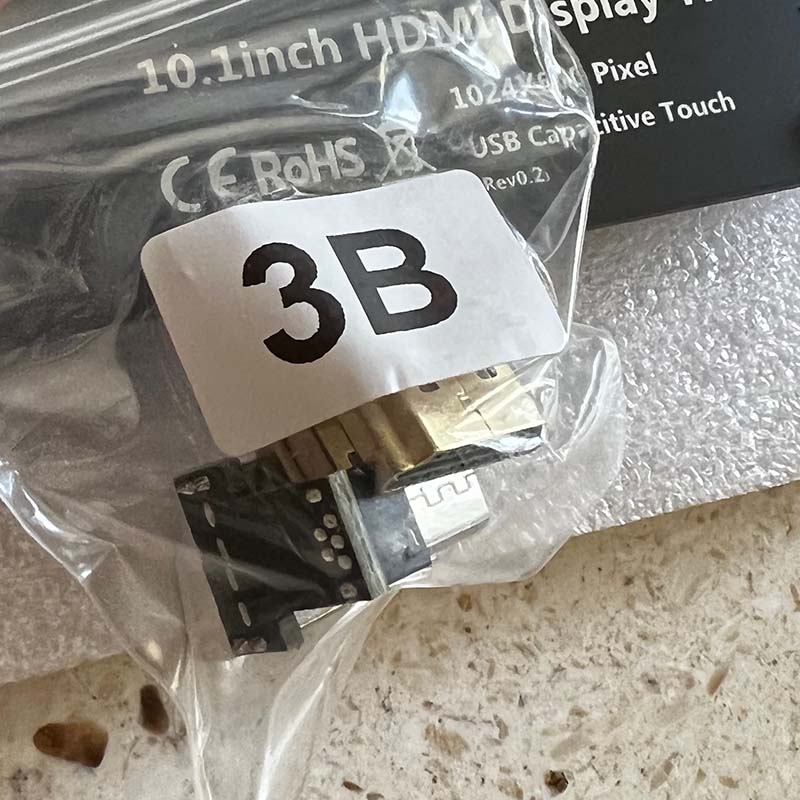

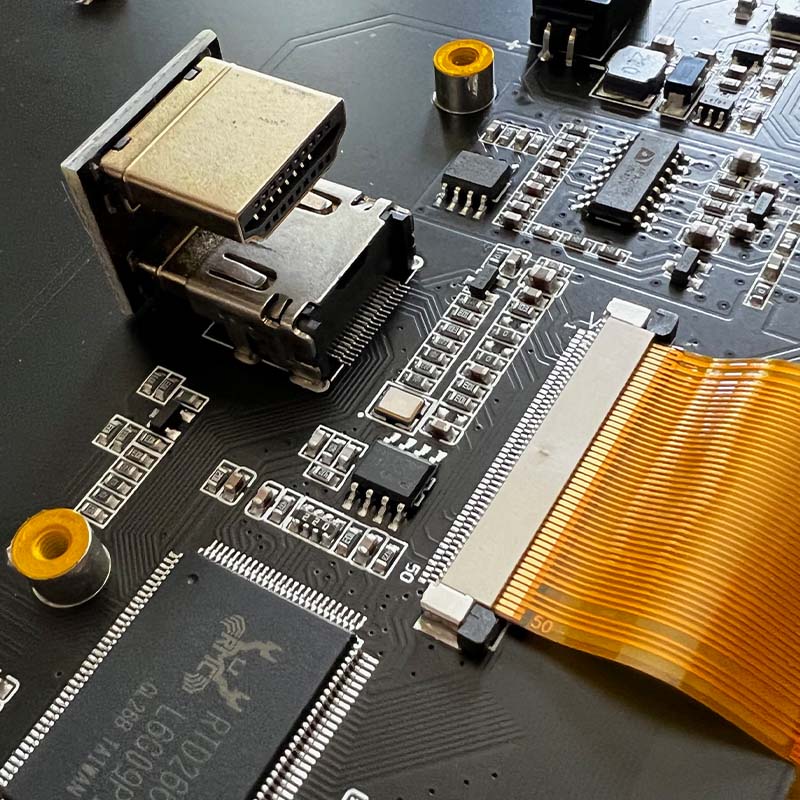

2: HDMI Connector

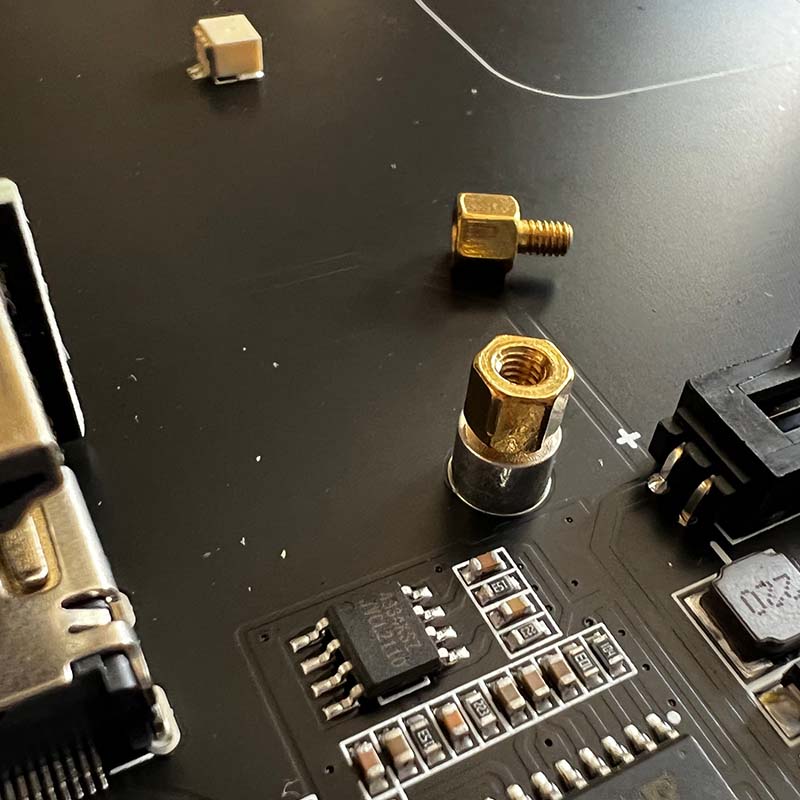

3: Standoffs

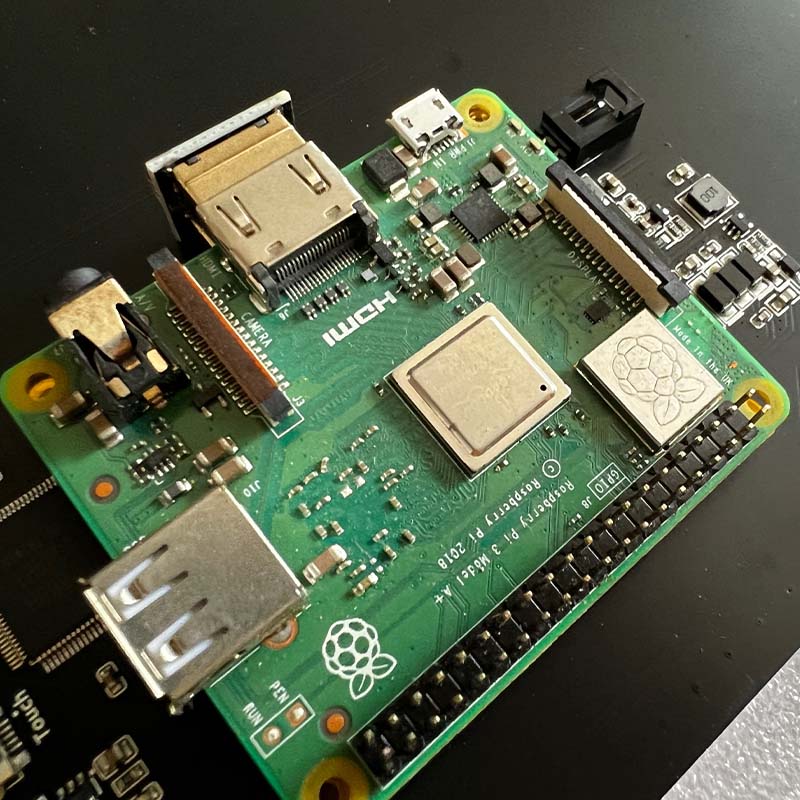

4: Connect Pi

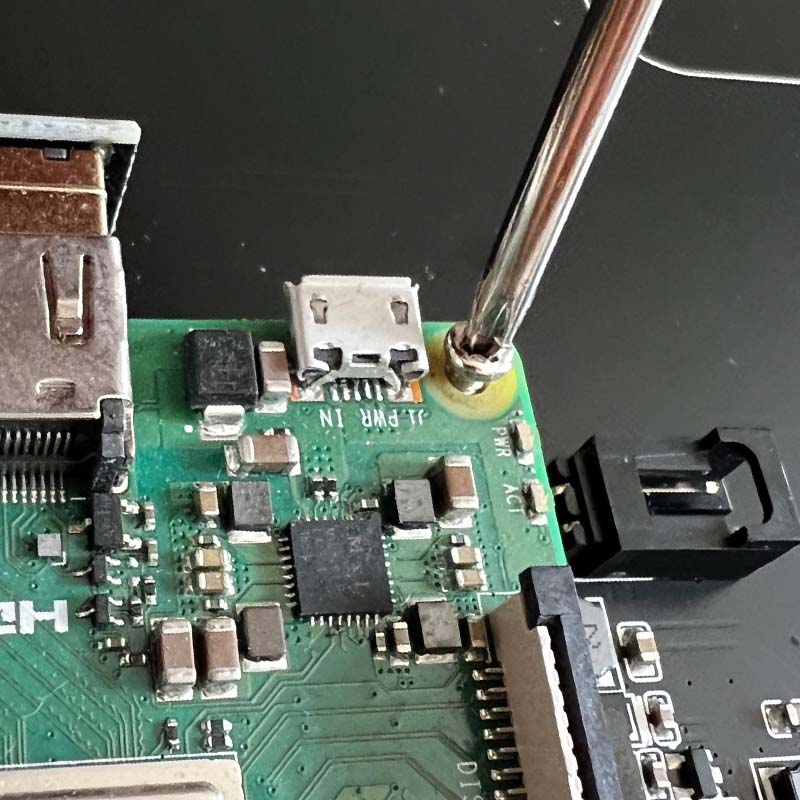

5: Little Screws

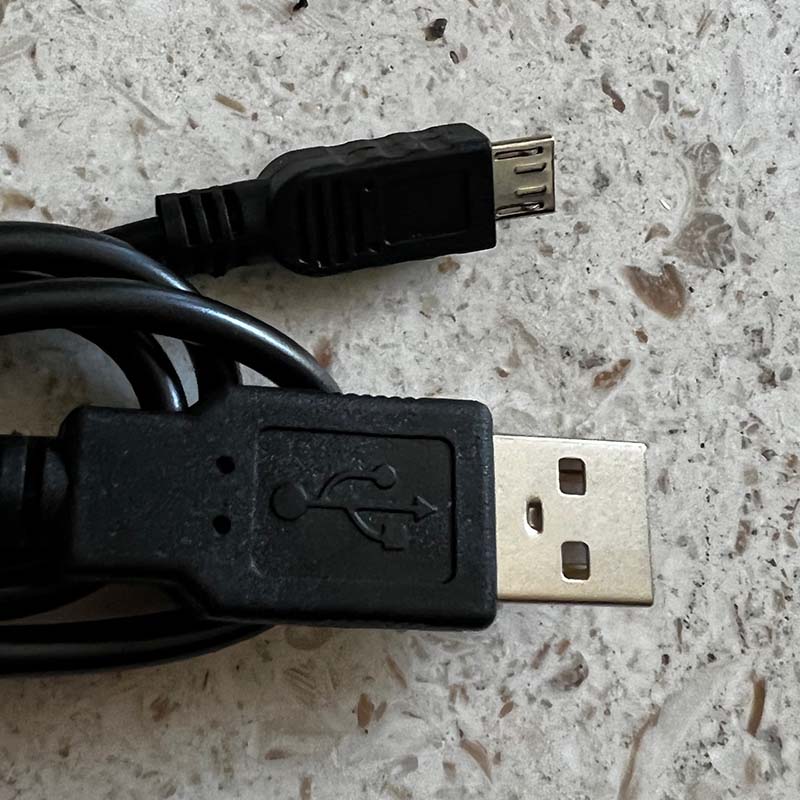

6: This Cable

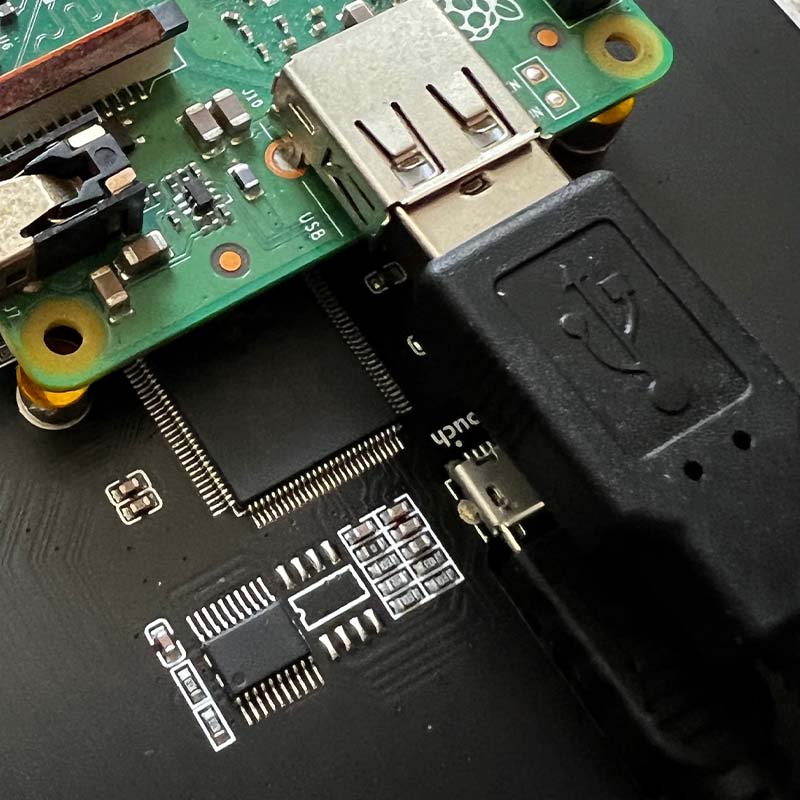

7: Connect Cable

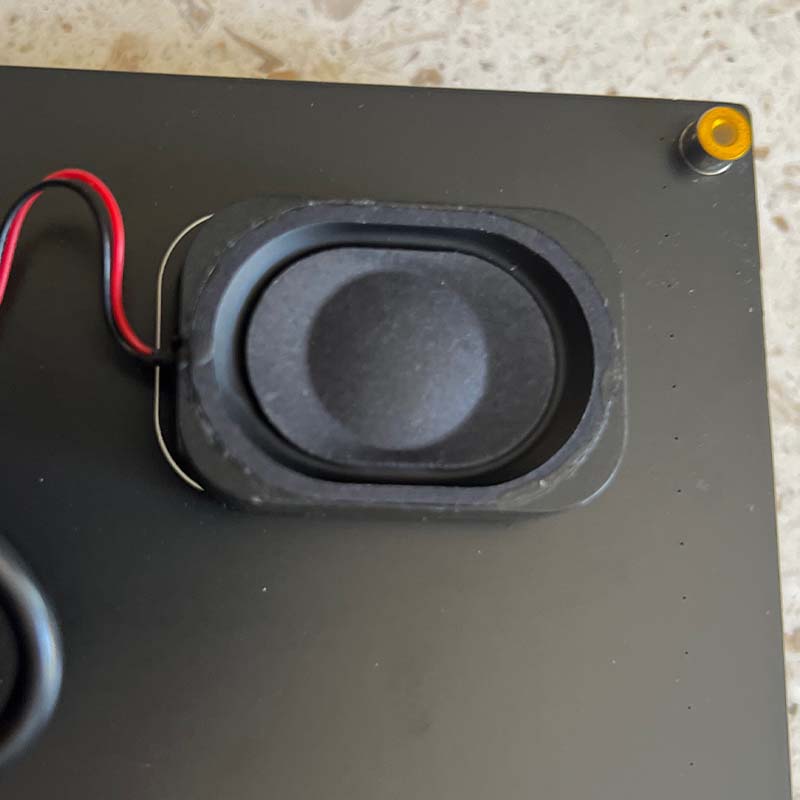

8: Speakers

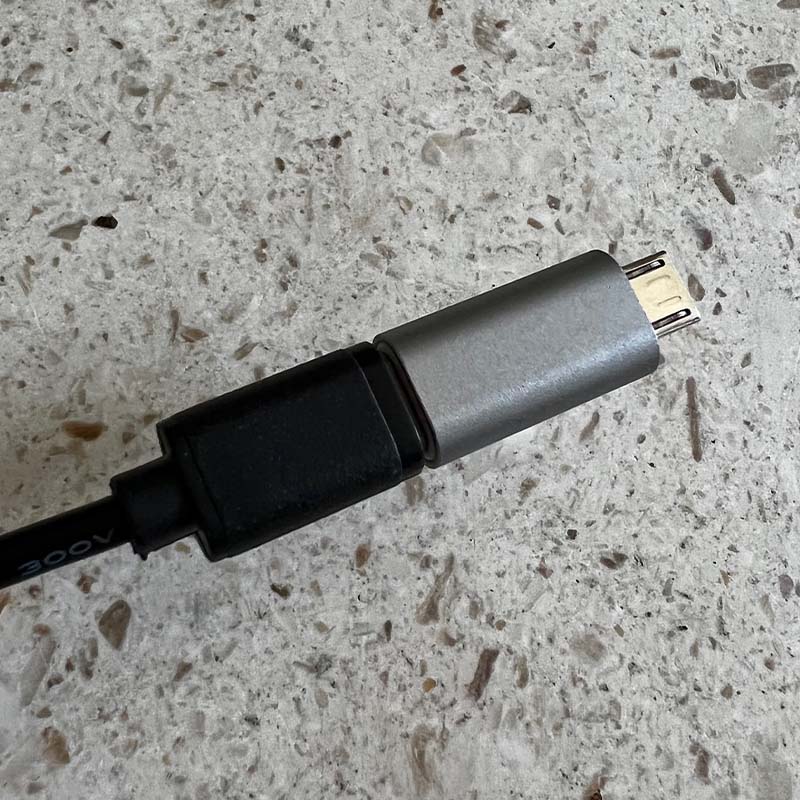

9: Adapter

10: Attach Legs

Part 5: Software!

Back to the terminal:

% ssh username@hostname.local

$ sudo apt-get install omxplayer

Note: As ever, remember to replace "username@hostname.local" with your username and hostname.

Are you creating a vertical frame? You'll need to tweak a setting:

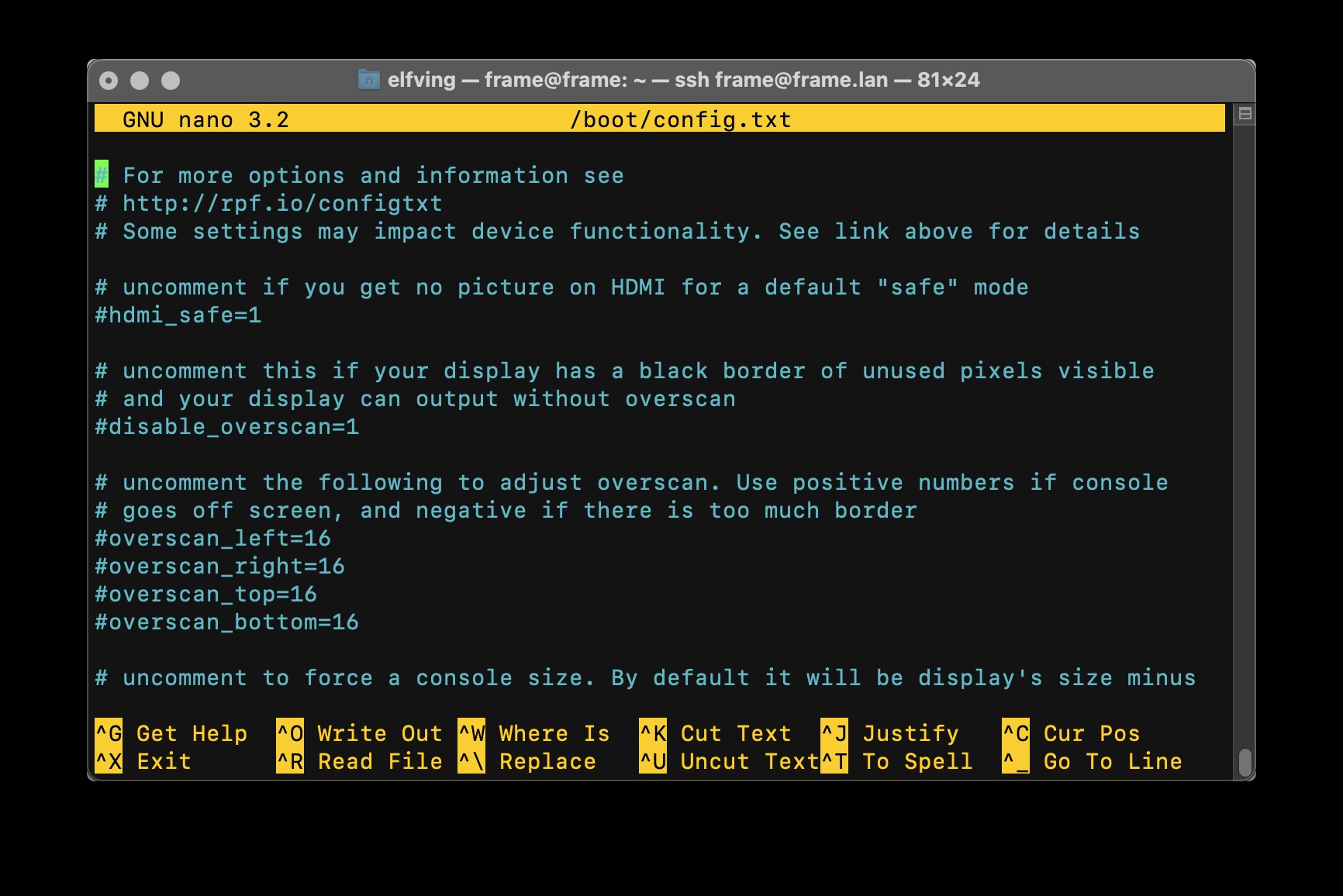

$ sudo nano /boot/config.txt

config.txt

What just happened??

We used the sudo command to launch the application nano, a text editor installed with Raspberry Pi OS.

We're using nano to open and edit the config.txt file located in the etc directory.

Use the arrow keys to navigate to the bottom of the file and add this:

display_hdmi_rotate=3

Press "control O" to "write Out" and save your changes, then press "control X" to "eXit" nano.

Once more, into raspi config

$ sudo raspi-config

Change screen resolution:

Tap down to open "Display Options" then select "Resolution" from the menu.

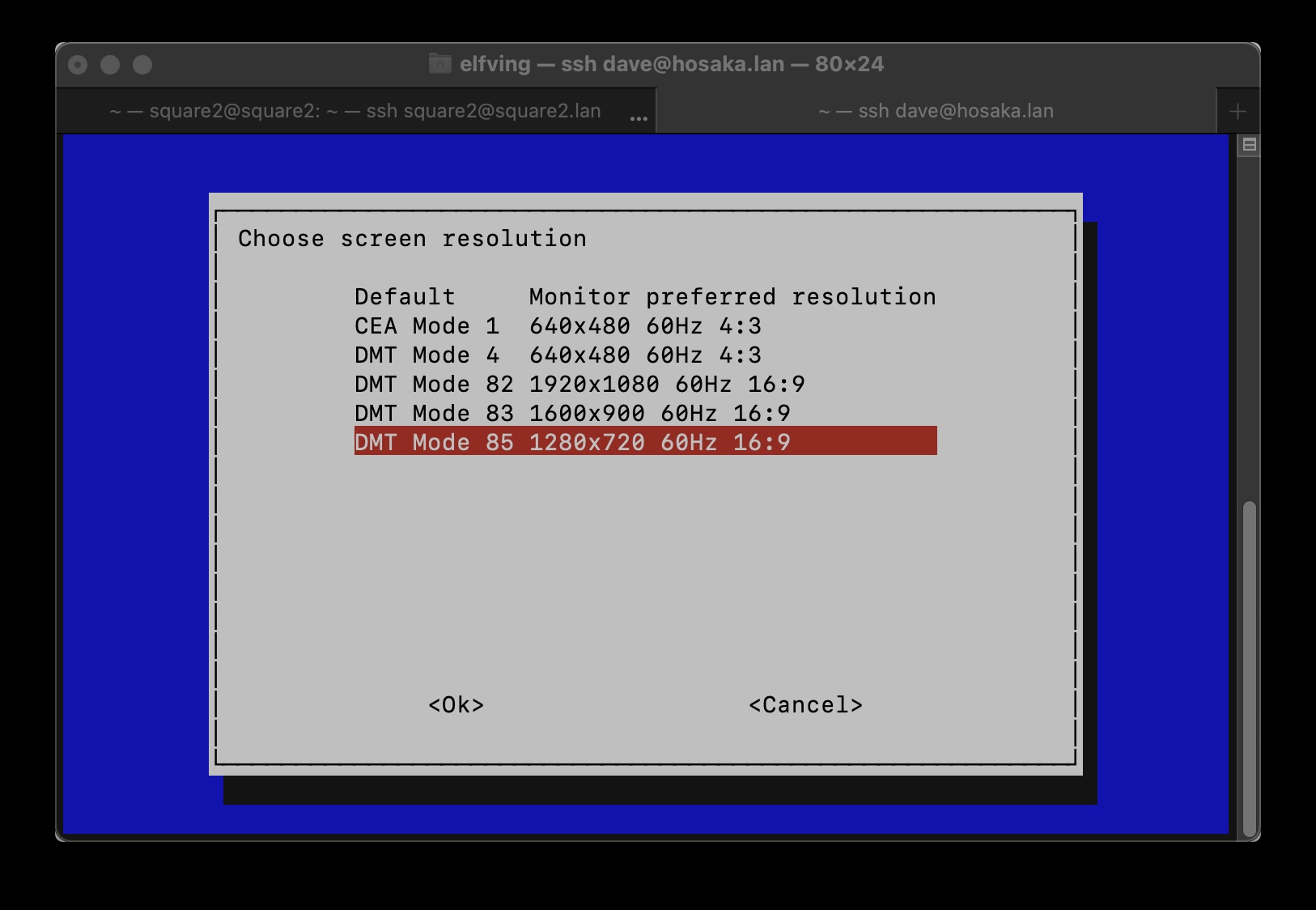

Choose DMT 85, then exit and reboot.

Resolution Settings

Let's try it!

$ streamlink --player-continuous-http --player omxplayer --fifo --player-args "--live --win \"0 0 1280 720\" {filename}" http://www.ustream.tv/channel/17074538 480p

Let's try it (vertical)!

$ streamlink --player-continuous-http --player omxplayer --fifo --player-args "--live --orientation 90 --win \"0 0 720 1280\" {filename}" http://www.ustream.tv/channel/17074538 480p

Let's make a script for this:

$ ls

$ touch iss-stream

$ ls

$ sudo nano iss-stream

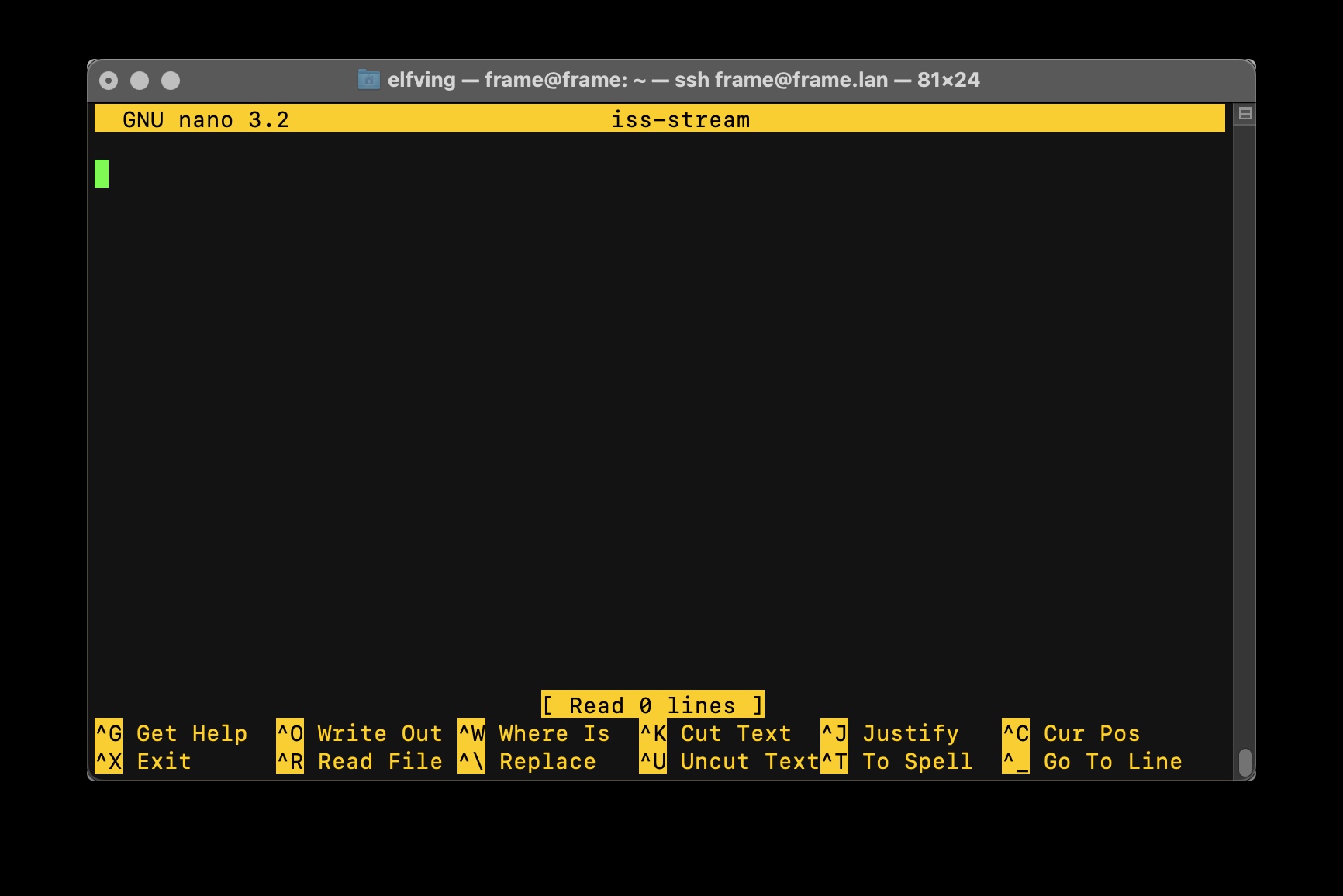

Empty...for now

Copy this:

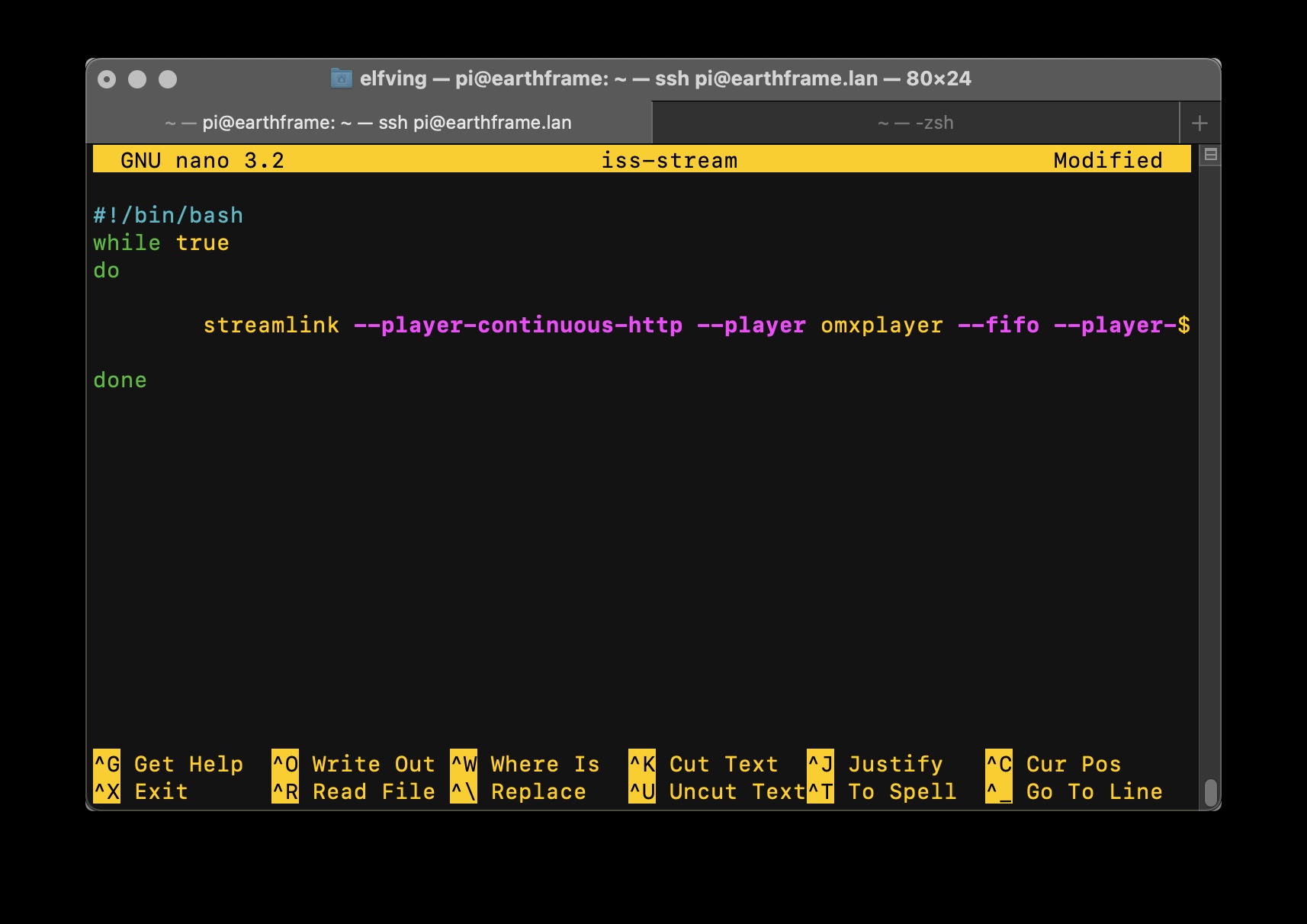

#!/bin/bash
while true
do

streamlink --player-continuous-http --player omxplayer --fifo --player-args "--live --orientation 90 --win \"0 0 720 1280\" {filename}" http://www.ustream.tv/channel/17074538 480p

done

Save and exit nano:

Make it executable:

$ sudo chmod u+x iss-stream

$ ls

$ ./iss-stream

Let's upload a video to the Pi:

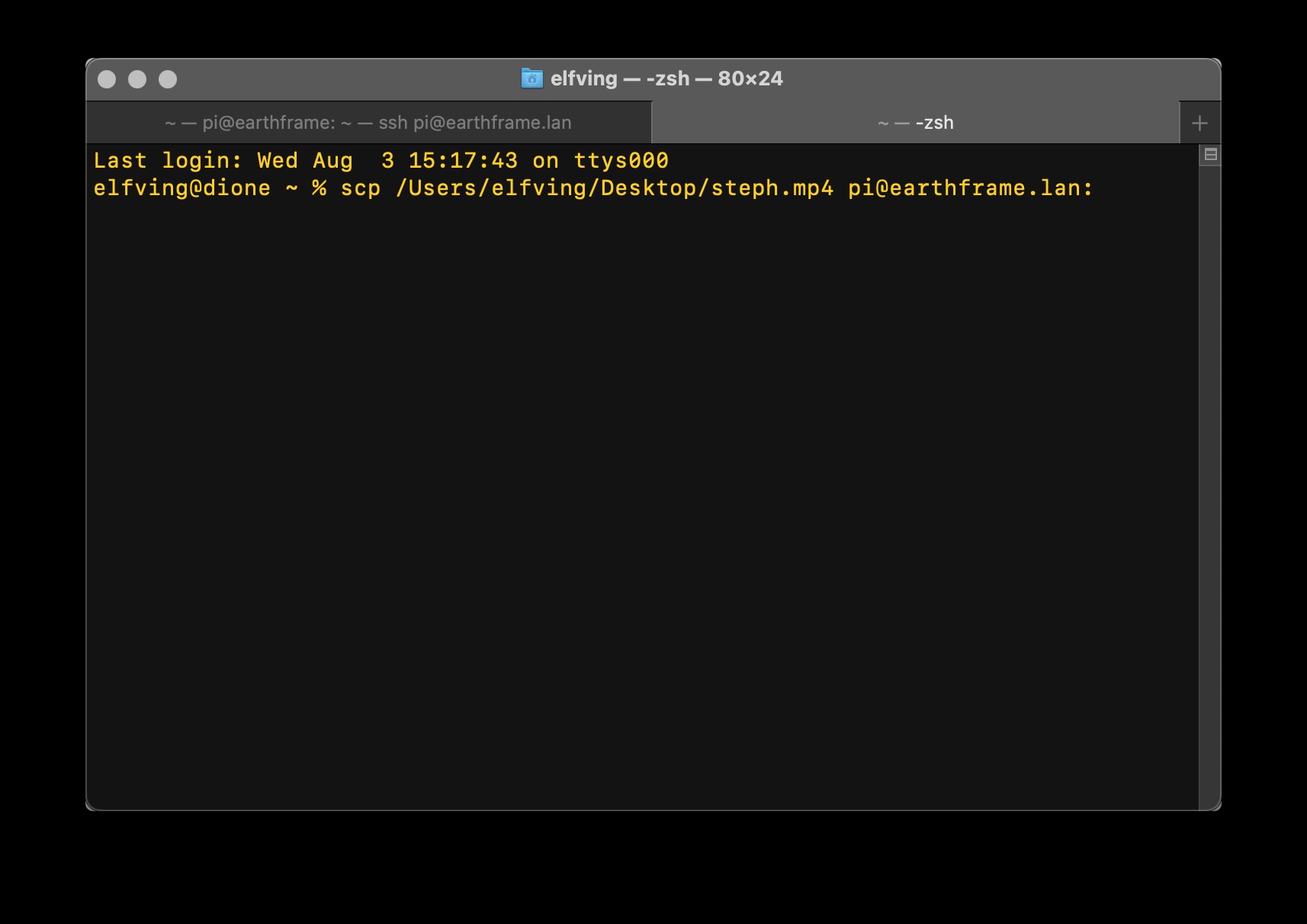

% scp <path to .mp4> username@hostname.local:

Note: run this command on your computer, not the Pi.

If you drag and drop your file onto the terminal, it will fill in the file path for you. Be sure to include the : at the end of the command.

scp in the terminal:

Open your video with Omxplayer:

$ ls

$ omxplayer --loop file.mp4

Note: After uploading the video to your Pi, type "ls" to see it listed in the home directory of the Pi. Replace "file.mp4" with the name of your file to loop it. Press "control C" to stop the video.

Let's make a script for looping video:

$ touch video-loop

$ sudo nano video-loop

Empty...for now

What just happened??

We used the touch command to create a new, empty fille named video-loop.

Then we used the sudo command to open that file with the nano editor.

Copy this into the file.

#!/bin/bash
while true
do

omxplayer --loop /home/username/file.mp4

done

Replce "username" with your username. Press "control O" to save the file, and "control X" to exit nano.

Make the script executable:

$ sudo chmod u+x video-loop

$ ./video-loop

Note: press "control C" to stop the video loop.

What just happened??

We used the chmod command to modify the permissions of the video-loop file.

The u + x modifier makes the script executable by the logged in user (you!).

Let's upload a Pictures directory:

% scp -r <Pictures> username@hostname.local:

Note: Run this command on your computer. Be sure to name your directory of images "Pictures".

Drag the Pictures folder onto the terminal, and replace "username@hostname.local" with your username and hostname. Don't forget the : at the end.

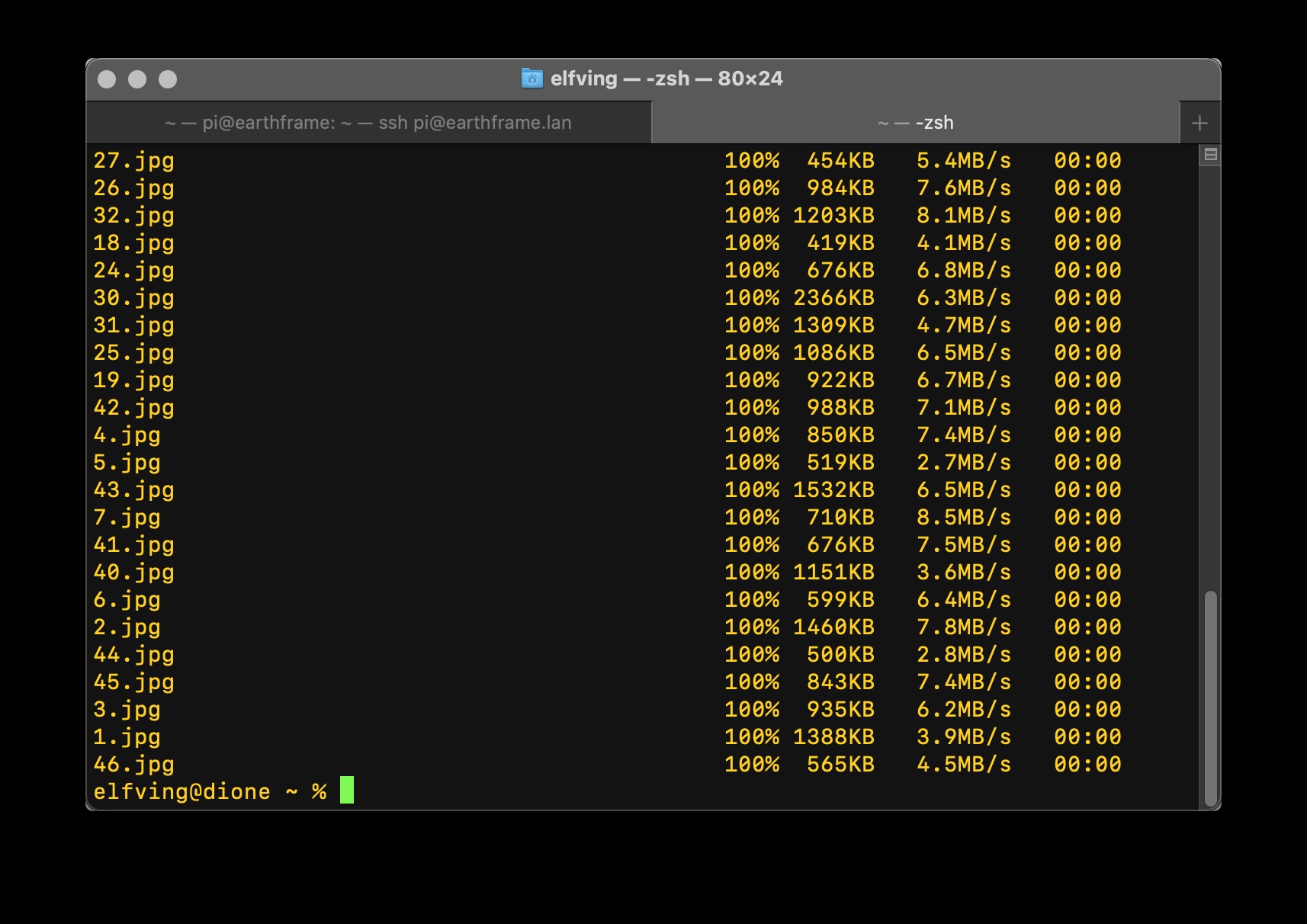

scp -r in the terminal:

Installing Picframe

$ sudo apt-get install python3-pip

$ sudo apt-get install python3-numpy

$ sudo apt-get install libjpeg-dev zlib1g-dev

$ sudo pip3 install picframe

$ picframe -i .

$ picframe

Note: after uploading your Pictures directory from your computer, remember to run these commands on the Raspberry Pi.

What's with the mats? Let's change the Picframe configuration:

$ cd picframe-data/config

$ sudo nano configuration.yaml

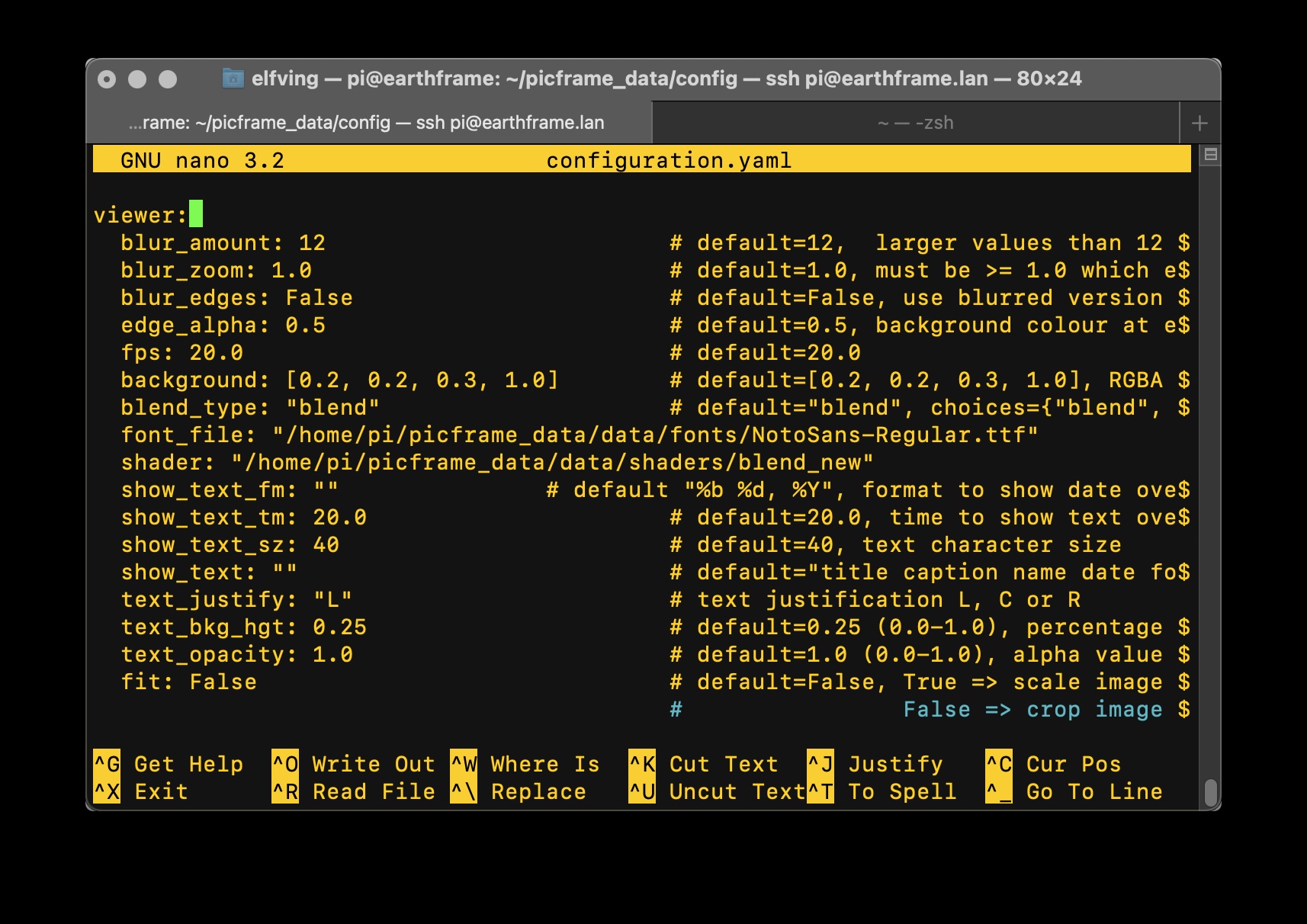

configuration.yaml:

What just happened??

We navigated to the picframe-data directory, then to the config directory within it.

Then we used sudo nano to open and edit the configuration.yaml file.

Suggested Configuration:

show_text_fm: ""

Remove the default values so no date is displayed.

show_text: ""

Remove the default values so no text is displayed.

mat_images: False

Change the default value to False to remove the automatic mat.

use_http: True

This is near the bottom of the file. Change the default to True.

Save your changes and reboot.

As before, press "control O" to save your changes and "control X" to exit nano. Reboot and log in to your Pi, then launch picframe again.

$ sudo reboot

Take note of your IP address.

Look at the screen of your frame when it boots. You should see an IP address listed. Make a note of it!

Restart picframe. You should see your config changes!

$ picframe

Open a web browser

Enter the IP address of your Pi followed by :9000

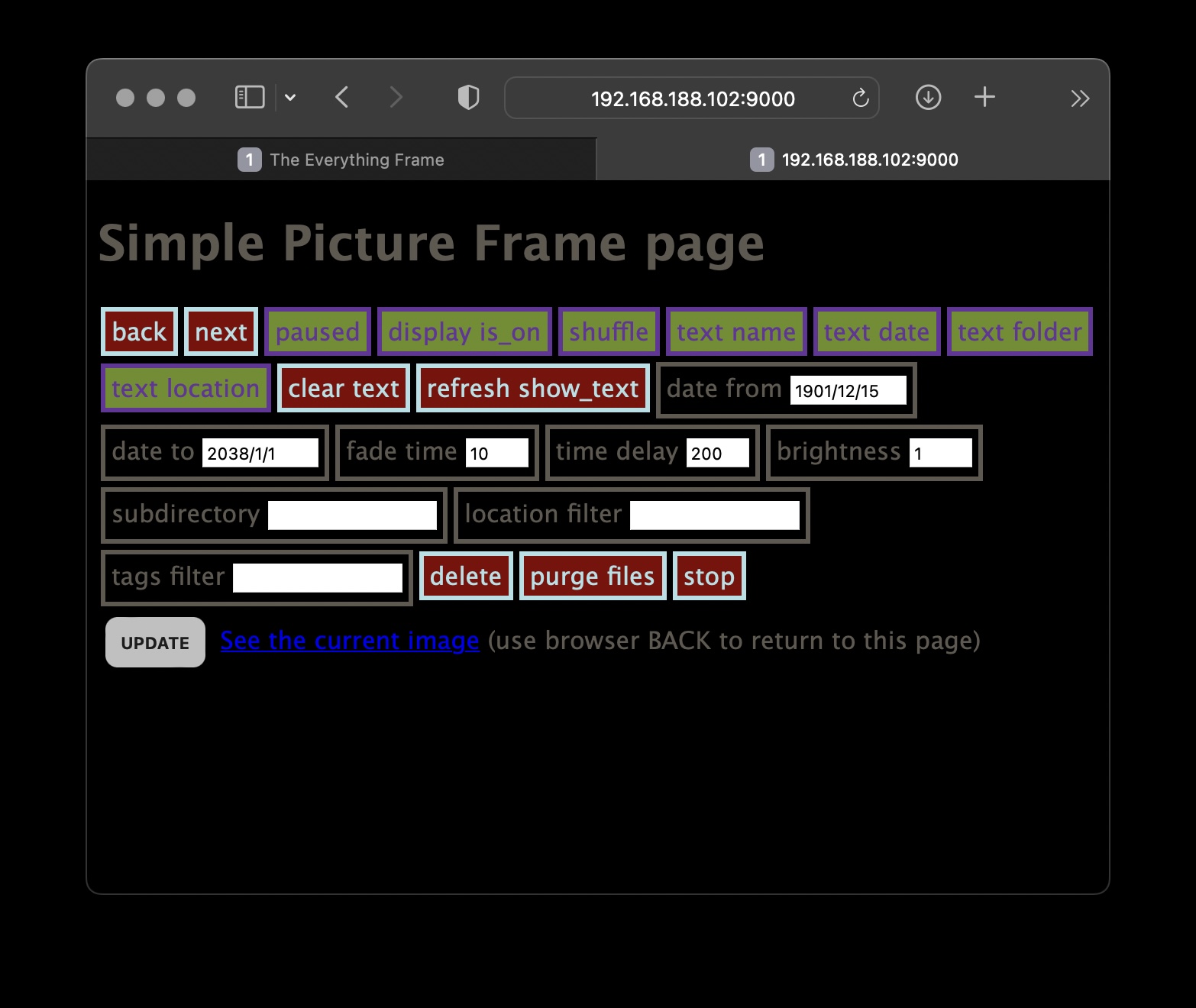

Picframe Remote:

Let's launch picframe at startup:

$ cd /etc

$ sudo nano rc.local

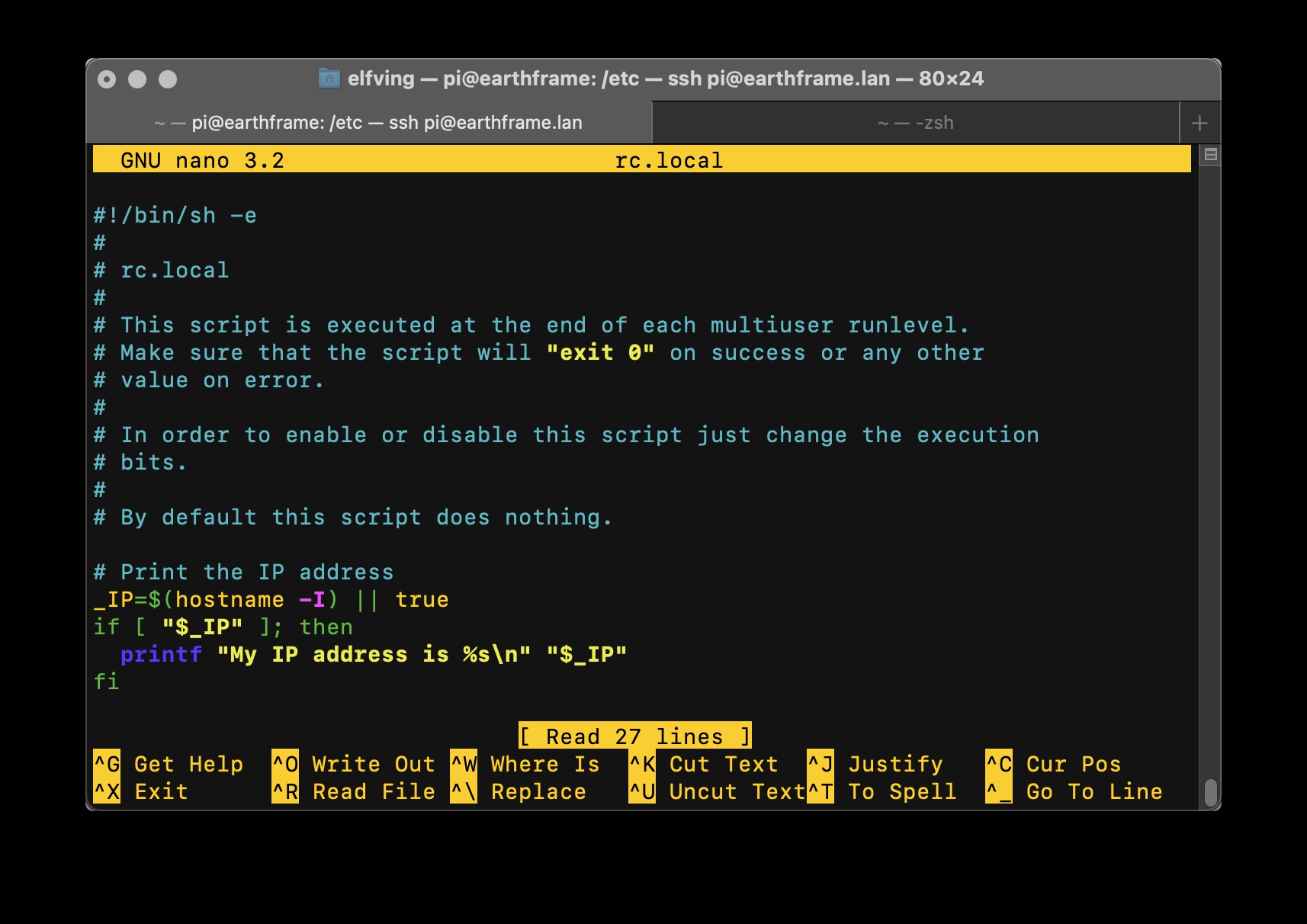

/etc/rc.local

Add this to rc.local, just above the "exit 0" line at the bottom of the file.

#start picframe
sudo -u username picframe &

Note: use your username rather than "username". Again, "contol O" to save, "control X" to exit nano.

Reboot!

$ sudo reboot

Picframe should start automatically.

Once more thing - your home network:

$ cd /etc

$ cd wpa_supplicant

$ sudo nano wpa_supplicant.conf

If your frame is configured for the class wifi network, we'll need to edit this file so it works for you at home.

wpa_supplicant.conf

Replace the existing values with your home wifi login and password:

ssid="Your Network"
psk="Your Password"

Save the file and shut down.

What if I'm not already connected to the Pi?

To change the network and password, we need to manually add a wpa_supplicant.conf file to the SD card.

Get started by powering down your Pi, removing the SD card and opening it on your computer – it will appear as "boot".

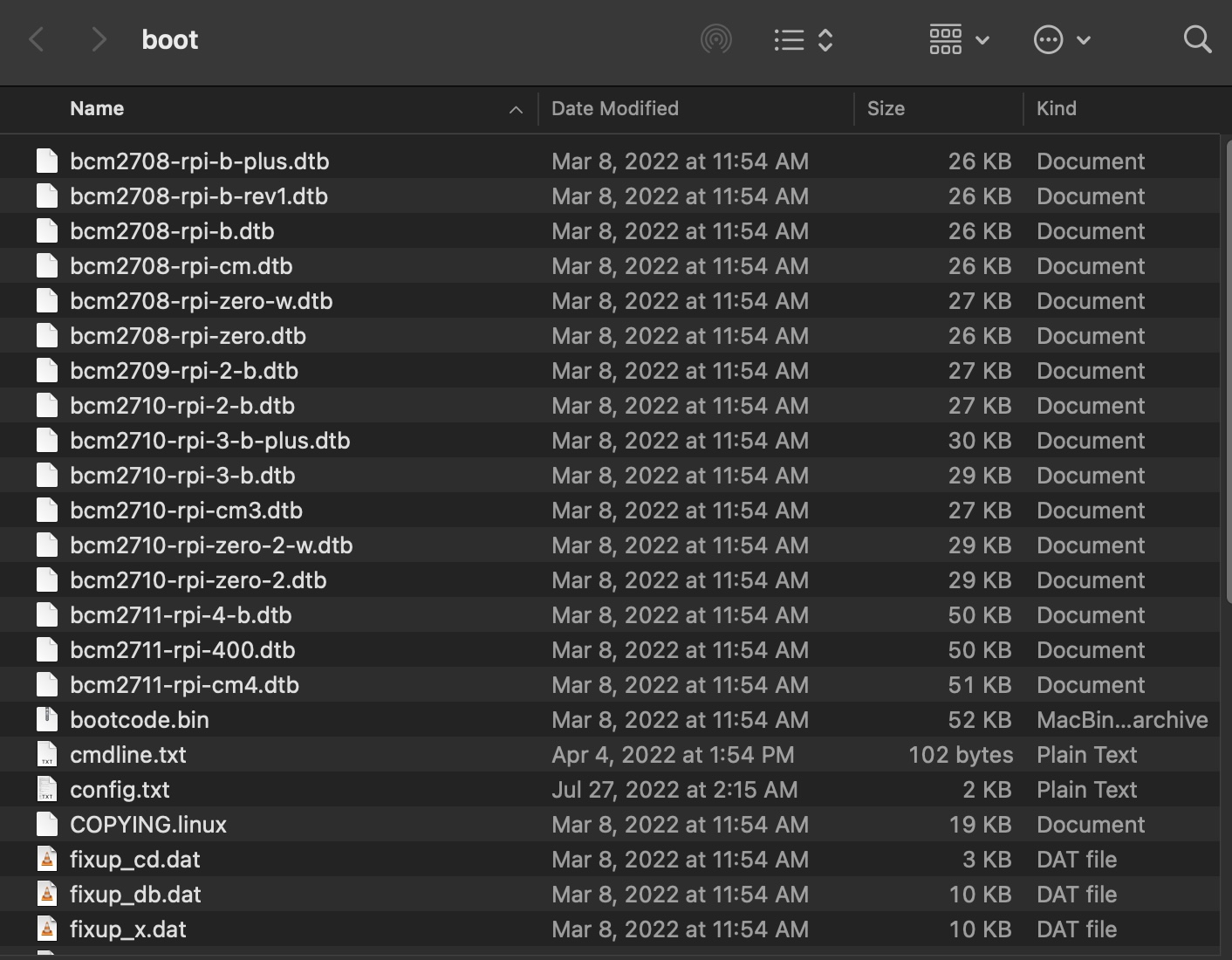

The contents of your "boot" SD card:

Create a new plain text document.

With TextEdit on a Mac or Notepad on Windows, open a new plain text file.

If the document has any text styling, it won't work with your Raspberry Pi.

Copy this into the plain text file.

country=us
update_config=1
ctrl_interface=/var/run/wpa_supplicant

network={
scan_ssid=1
ssid="Network_Name"
psk="Network_Password"
}

Replace Network_Name and Network_Password with your wifi network info. Save the file to your SD card as wpa_supplicant.conf (make sure there's .txt or other extension.)

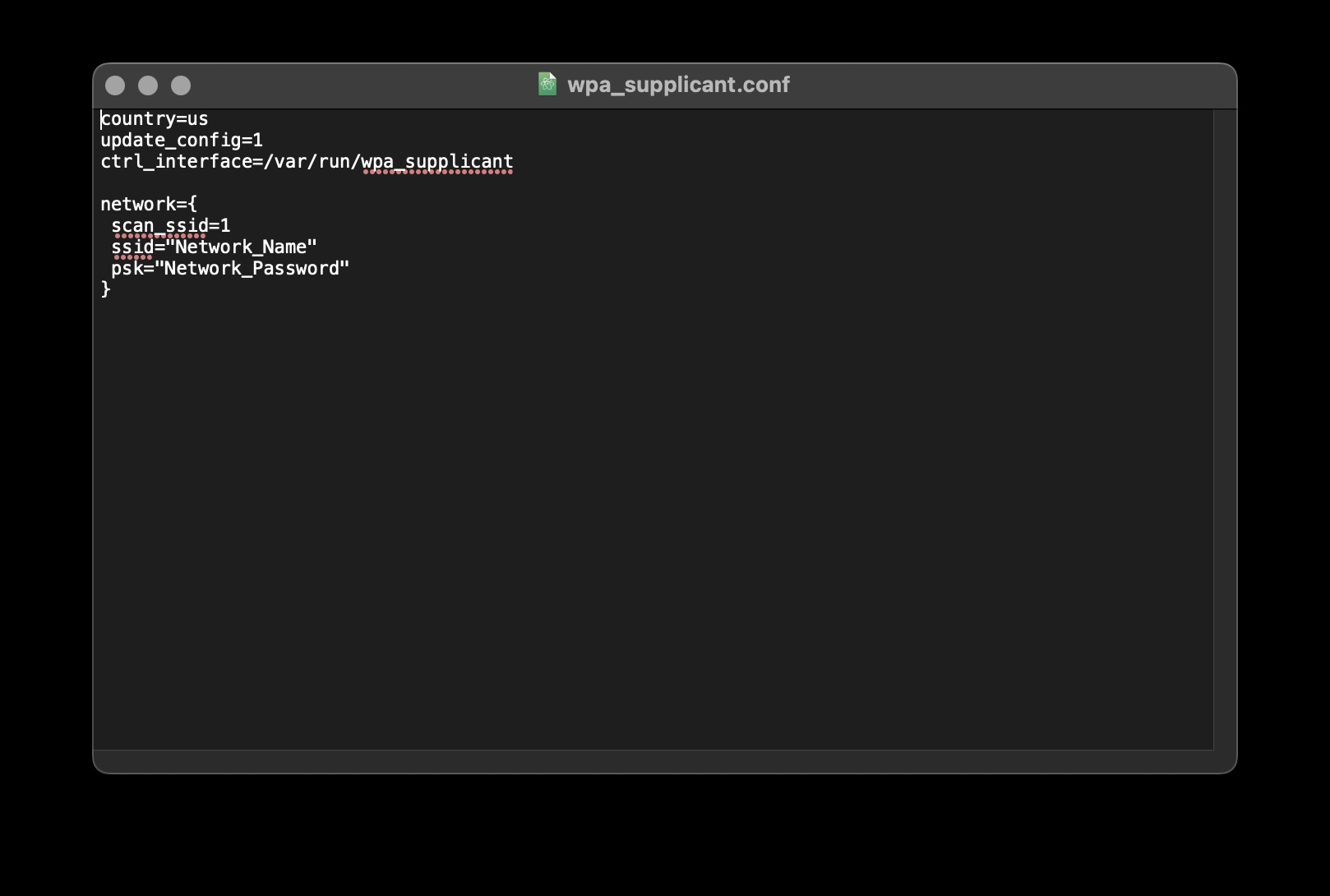

Your file should look something like this:

That's it!

Insert the SD card back into the Pi and restart. Your frame should automatically connect to your network and launch picframe.
